The 7016 luminaire from the Rol range by MILAN ILUMINACION has a housing made from punched sheet steel (1 mm) and an acid-etched diffuser made from hand-blown opal triplex blown glass. Finish: white textured paint (RAL 9016). Diffuser glass with socket and connection cable; shade to be ordered separately: 4013/4017 (110), 4018/4023 (55), 4027/4029 (45).
1 × E27 socket, 230 V, for LED bulbs up to 14 W; dimmability, colour rendering and energy efficiency class depend on the bulb used; protection rating IP55 (dust- and water-jet-proof); protection class I (with earth connection), height 237 mm, diameter 140 mm.
Not included: light bulb. Suitable model: 2016 (E27 LED 14 W, 1,400 lm, 2,700 K, dimmable).
Technical specifications
| Luminaire |
|---|
| Item number | 7016 | Luminaire type | Luminaire body |
| Family | Rol | EAN | 8435146970160 |
| Design and material |
|---|
| Finish | textured white paint finish (RAL 9016) | Housing | Punched sheet steel, 1 mm |
| Diffuser | Hand-blown opal triplex blown glass, acid-etched |
| Electrical |
|---|
| Lamp holder | 1 × E27 | Rated voltage | 230 V |
| Max. power | 14 W | Dimmability | Depends on the light source |
| Colour rendering | Depends on the light source | Energy efficiency class | Depends on the light source |
| Ingress protection | IP55 | Protection class | I |
| Dimensions |
|---|

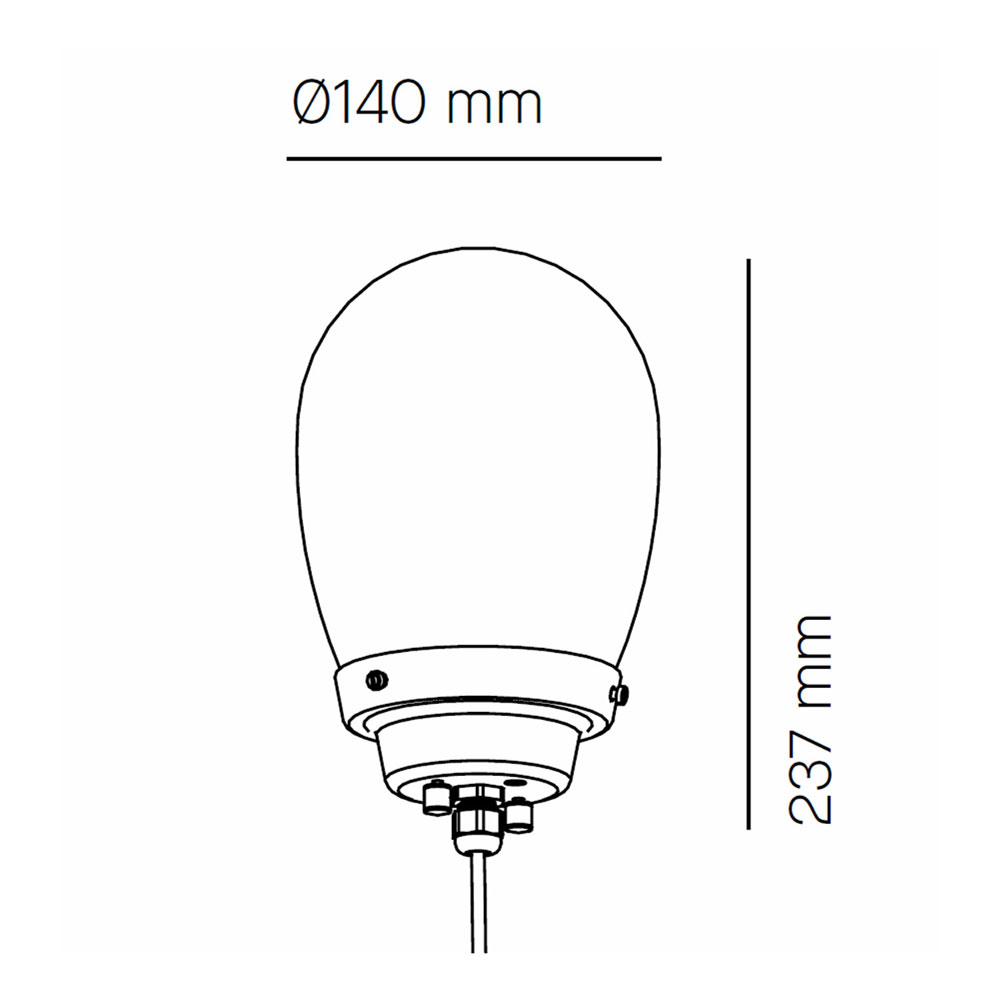

| Height | 237 mm | Diameter | 140 mm |
| Suitable light bulbs (not included) |
|---|
| 2016 | E27 LED 14 W, 1,400 lm, 2,700 K, dimmable |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 19 × 19 × 14.5 cm |
| Shipping weight | 0.9 kg |
