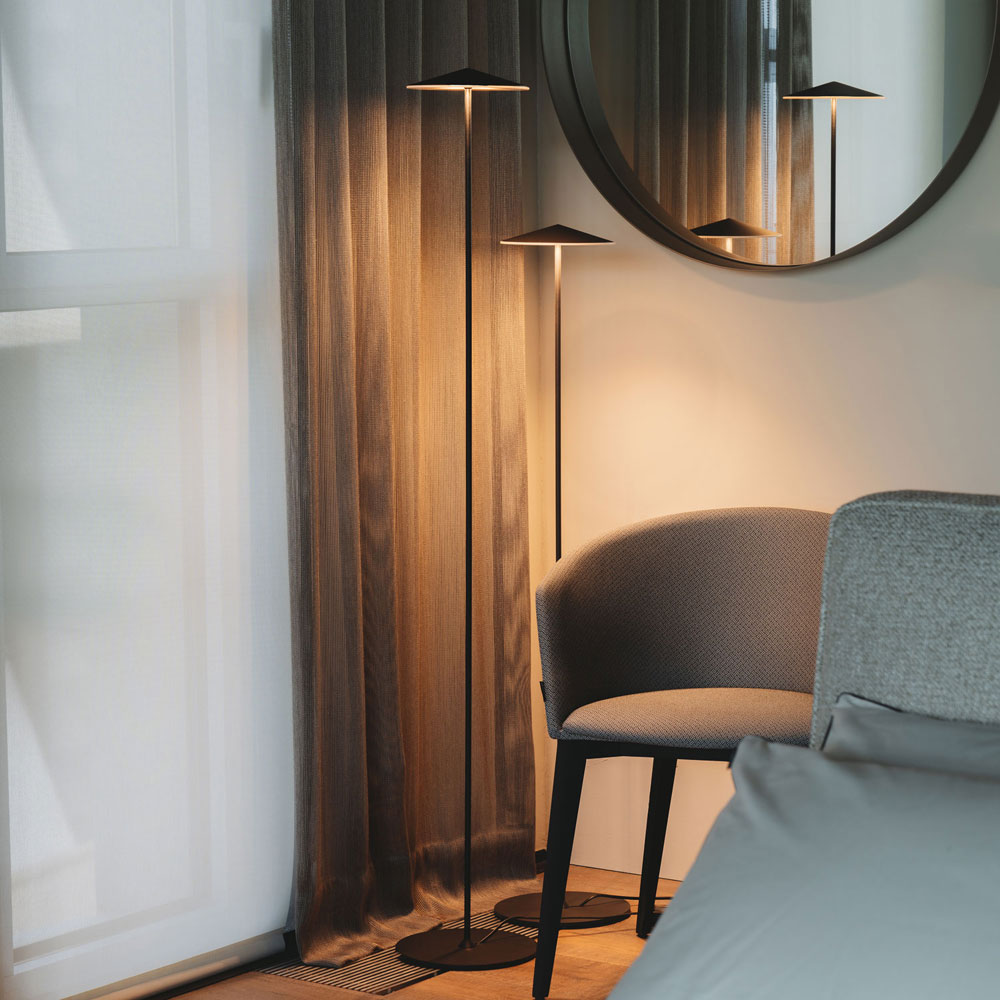

The 7018 floor lamp from the Pla range by MILAN ILUMINACION has a die-cast aluminium housing and an injection-moulded polycarbonate diffuser. Finish: textured anthracite grey (RAL 7016).
3 × DOB-LED 5 W, total power 15 W, 1,500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED circuit board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, dimmer in the cable, energy efficiency class F, IP20 protection rating (for dry indoor use only), Protection Class II (insulated), height 1,465 mm, diameter 240 mm, base plate 200 mm.
Tested dimmers: Relco, dimmable 15–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 7018 | Luminaire type | floor lamp |
| Range | Pla | EAN | 8435146970184 |
| Design and material |
|---|
| Finish | textured anthracite grey (RAL 7016) |
| Housing | Die-cast aluminium | Diffuser | Injection-moulded polycarbonate |
| Light |
|---|
| Light source | 3 × DOB LED 5 W | Luminous flux | 1,500 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | F | Protection rating | IP20 |
| Protection class | II |
| Dimensions |
|---|
| Height | 1,465 mm | Diameter | 240 mm |
| Base plate | 200 mm |
| Packaging and dispatch |
|---|
| Number of cartons | 1 | Carton 1 | 188.4 × 25.9 × 28 cm |
| Shipping weight | 5.5 kg |
