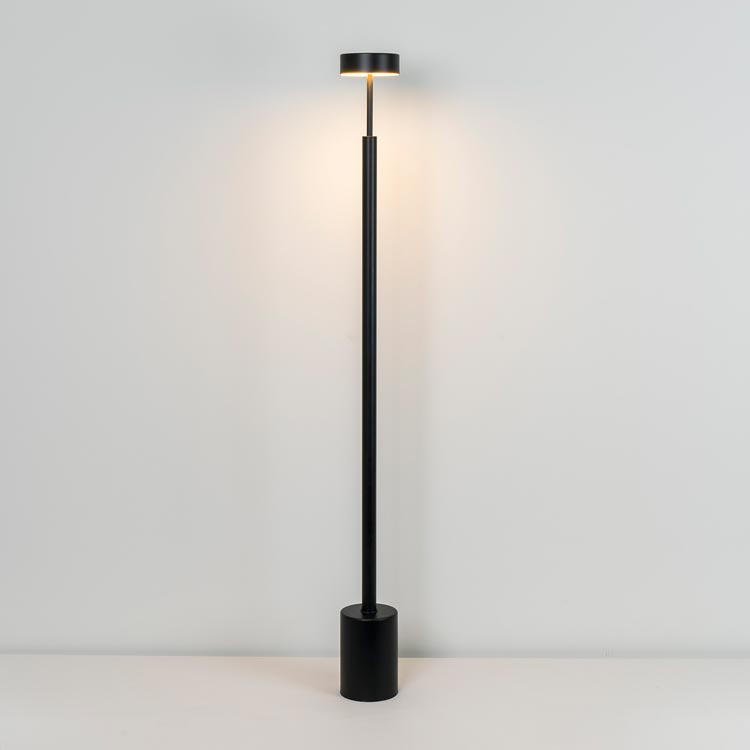

The 6760 floor lamp from the Peak range by MILAN ILUMINACION has a body made from punched sheet steel (1 mm). Finish: matt black lacquer (RAL 9005).
3 × DOB-LED 5 W, total power 15 W, 1,500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, dimmer in the cable, energy efficiency class F, Protection rating IP20 (for dry indoor use only), protection class I (with earth connection), height 580 mm, diameter 120 mm, base plate 120 mm.
Tested dimmers: Relco, dimmable 15–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 6760 | Luminaire type | floor lamp |
| Family | Peak | EAN | 8435146967603 |
| Design and material |
|---|
| Finish | matt black lacquered (RAL 9005) | Housing | Punched sheet steel, 1 mm |
| Light |
|---|
| Light source | 3 × DOB LED 5 W | Luminous flux | 1,500 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | F | Protection rating | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 580 mm | Diameter | 120 mm |
| Base plate | 120 mm |
| Packaging and dispatch |
|---|
| Number of cartons | 1 | Box 1 | 188.4 × 25.9 × 28 cm |
| Shipping weight | 7.6 kg |
