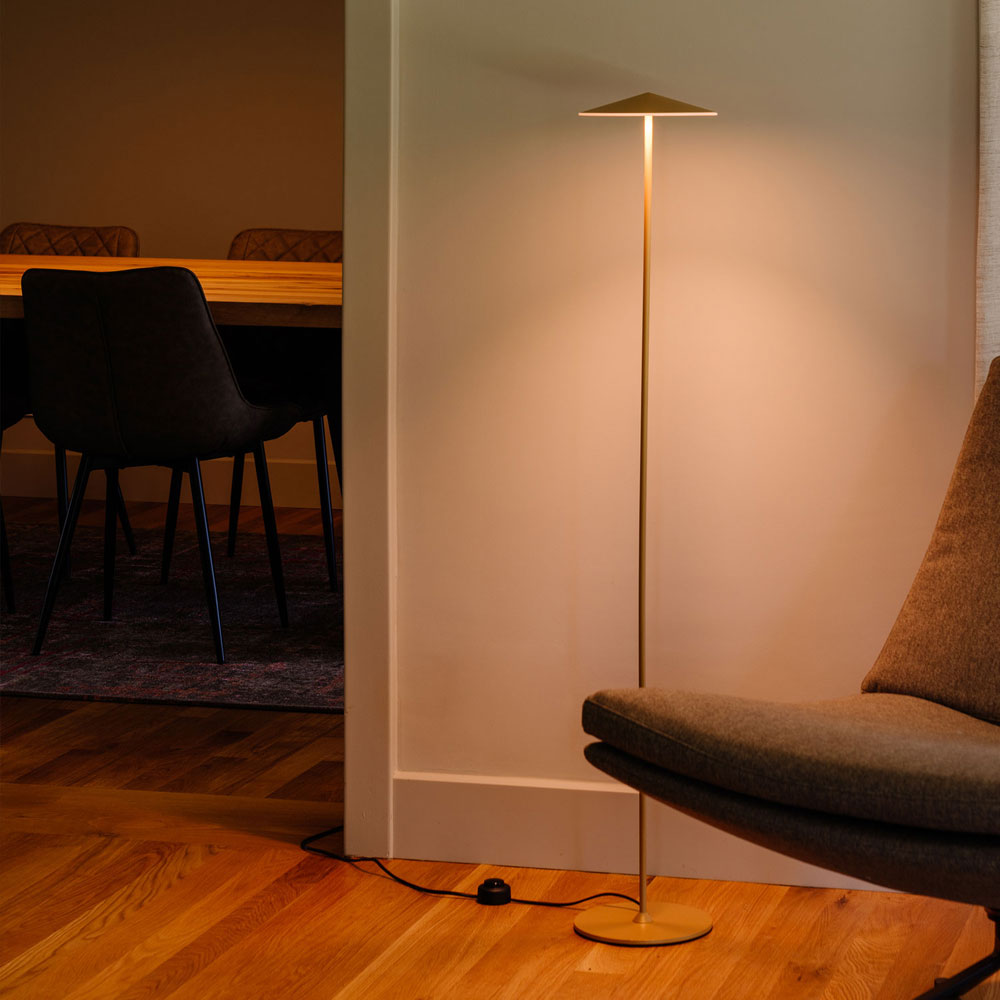

The 4922 floor lamp from the Pla range by MILAN ILUMINACION has a die-cast aluminium body and an injection-moulded polycarbonate diffuser. Finish: metallic gold textured paint (D2525 Gundar metallic satin).
3 × DOB-LED 5 W, total power 15 W, 1,500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, dimmer in the cable, energy efficiency class F, IP20 protection rating (for dry indoor use only), Protection Class II (insulated), height 1,205 mm, diameter 240 mm, base plate 200 mm.
Tested dimmers: Relco, dimmable 15–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 4922 | Luminaire type | floor lamp |
| Range | Pla | EAN | 8435146949227 |
| Finish and material |
|---|
| Finish | textured metallic gold finish (D2525 Gundar metallic satin) |
| Housing | Die-cast aluminium | Diffuser | Injection-moulded polycarbonate |
| Light |
|---|
| Light source | 3 × DOB LED 5 W | Luminous flux | 1,500 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | F | Protection rating | IP20 |
| Protection class | II |
| Dimensions |
|---|
| Height | 1,205 mm | Diameter | 240 mm |
| Base plate | 200 mm |
| Packaging and dispatch |
|---|
| Number of cartons | 1 | Box 1 | 150.9 × 25.9 × 28 cm |
| Shipping weight | 4.8 kg |
