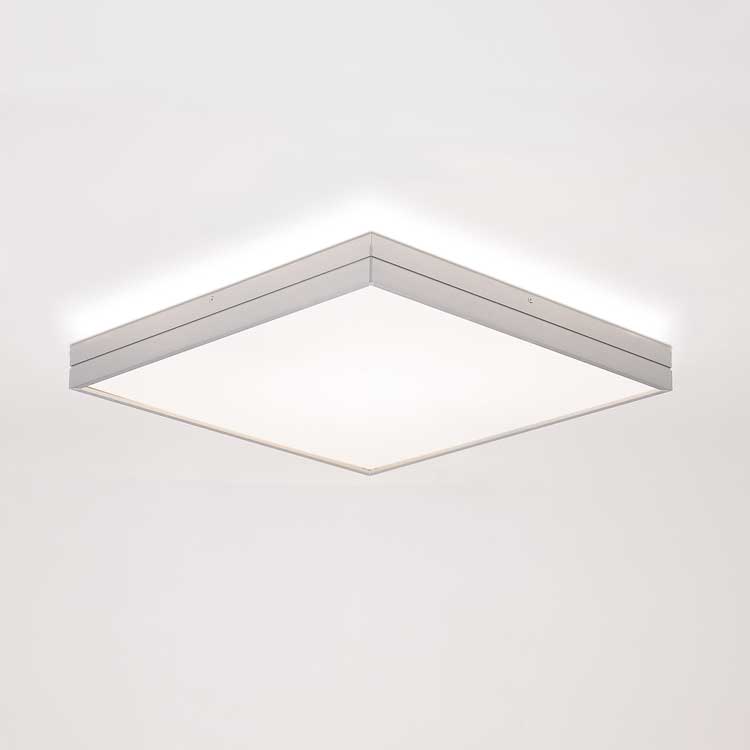

The 6501 surface-mounted light from the Linea range by MILAN ILUMINACION features a housing made from extruded aluminium profile and a diffuser made from acid-etched flat glass (4 mm). Finish: brushed, anodised aluminium.
1 × PCB LED 29 W, 2,580 lm (89 lm/W), 2,700 K, CRI 90, 230 V, dimmable, energy efficiency class E, protection rating IP20 (for dry indoor use only), protection class I (with earth connection), height 75 mm, length 370 mm, width 370 mm, Canopy 275 × 275 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical specifications
| Luminaire |
|---|
| Item number | 6501 | Luminaire type | surface-mounted light |
| Range | Linea | EAN | 8435146965012 |
| Design and material |
|---|
| Finish | Brushed, anodised aluminium | Housing | Extruded aluminium profile |
| Diffuser | Flat glass, acid-etched, 4 mm |
| Light |
|---|
| Light source | 1 × PCB LED 29 W | Luminous flux | 2,580 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Electrical |
|---|
| Rated voltage | 230 V | Dimmability | dimmable |
| Energy efficiency class | E | Protection rating | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 75 mm | Length | 370 mm |
| Width | 370 mm | Canopy | 275 × 275 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 50 × 50 × 14.5 cm |
| Shipping weight | 4.1 kg |
