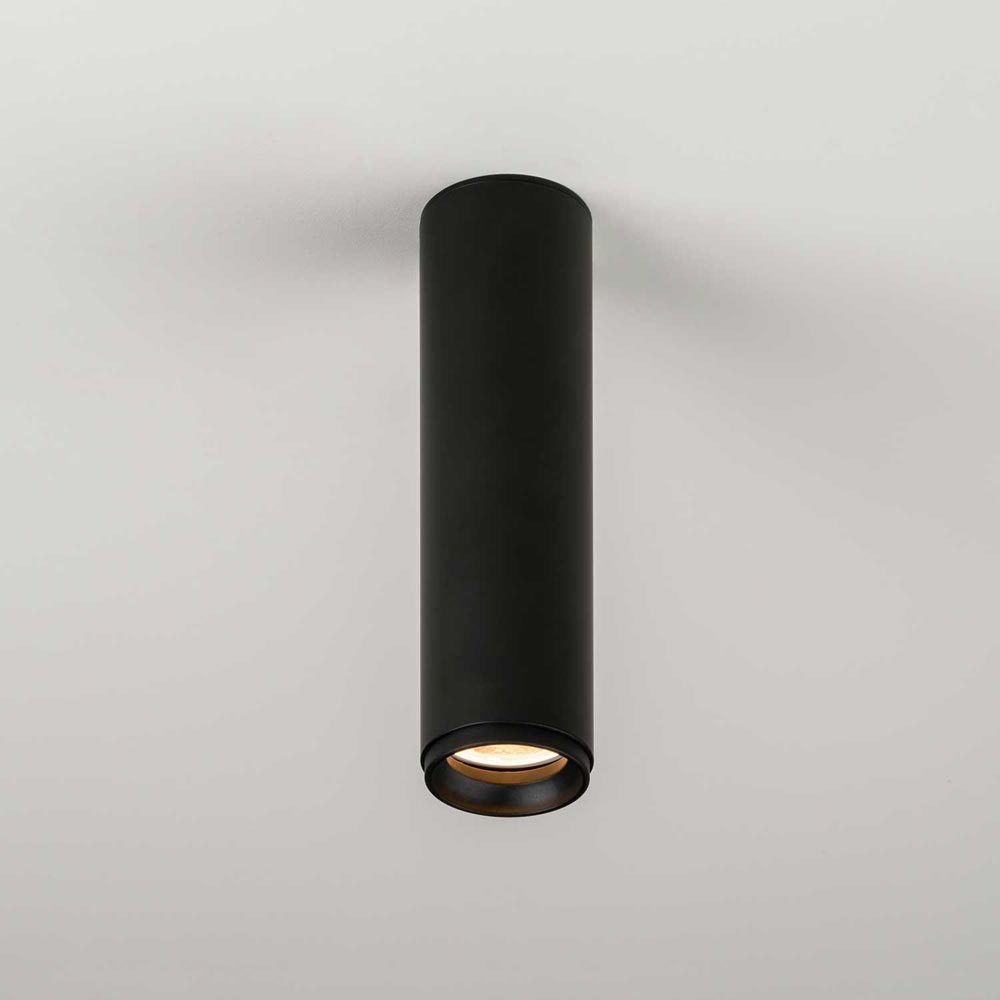

Surface-mounted light 6862 MLN Haul 55 AC CL, black

The 6862 surface-mounted light from the Haul range by MILAN ILUMINACION has a housing made from extruded aluminium tubing. Finish: textured black (RAL 9005).

1 × DOB LED 7 W, 665 lm (95 lm/W), 2,700 K, CRI 90, 3-step MacAdam, beam angle 58°, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class E, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 210 mm, diameter 55 mm, canopy 55 mm.

Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.

Technical data

Luminaire
Item number6862Luminaire typesurface-mounted light
FamilyHaulEAN8435146968624
Design and material
Finishtextured black paint finish (RAL 9005)
HousingExtruded aluminium tube
Light
Light source1 × DOB LED 7 WLuminous flux665 lm
Light colour2,700 KColour renderingCRI 90
Colour tolerance3-step MacAdamBeam angle58°
Electrical
Rated voltage230 V
Dimmabilitydimmable with an LED-compatible phase-cut dimmer
Energy efficiency classEProtection ratingIP20
Protection classI
Dimensions
Height210 mmDiameter55 mm
Canopy55 mm
Packaging and dispatch
Number of boxes1Box 131.5 × 11 × 10 cm
Shipping weight0.2 kg

Delivery time approx. 1–2 weeks
Item no. 6862
Contact Us
Documents
6861-6862 HAUL Assembly instructons.pdf documents_products_haul67286789679367996801684168576861data-sheetesdpdf-7638144.pdf haul.pdf
