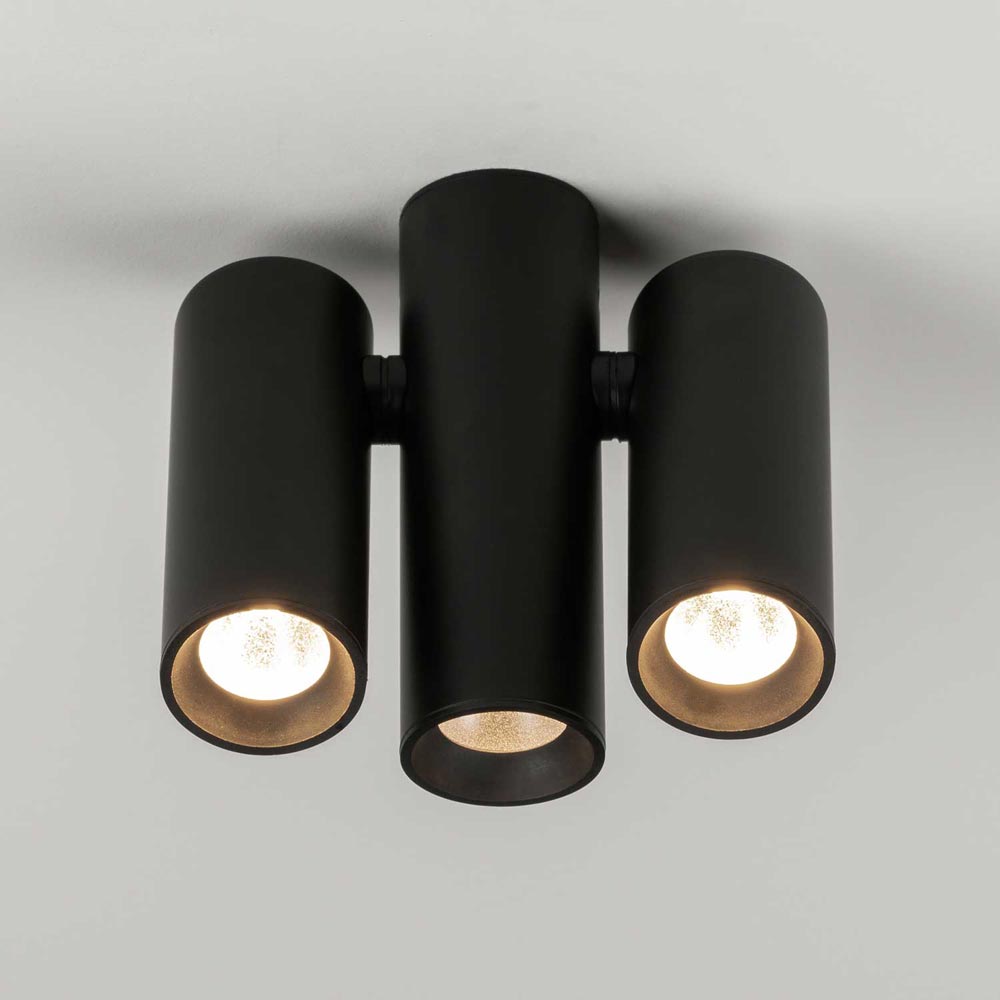

The 6794 surface-mounted light from the Haul range by MILAN ILUMINACION has a housing made from extruded aluminium tubing. Finish: textured black paint (RAL 9005).
3 × DOB-LED 5 W, total power 15 W, 1,500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, beam angle 35°, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class E, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), rotates 300°, height 123 mm, diameter 40 mm, length 130 mm, ceiling rose 40 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 6794 | Luminaire type | surface-mounted light |
| Family | Haul | EAN | 8435146967948 |
| Design and material |
|---|
| Finish | textured black paint finish (RAL 9005) |
| Housing | Extruded aluminium tube |
| Light |
|---|
| Light source | 3 × DOB-LED 5 W | Luminous flux | 1,500 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam | Beam angle | 35° |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | E | Protection rating | IP20 |
| Protection class | I |
| Motion |
|---|
| Movement | Rotates 300° |
| Dimensions |
|---|
| Height | 123 mm | Diameter | 40 mm |
| Length | 130 mm | Canopy | 40 mm |
| Packaging and dispatch |
|---|
| Number of cartons | 1 | Box 1 | 16.5 × 13.5 × 8.9 cm |
| Shipping weight | 0.7 kg |
