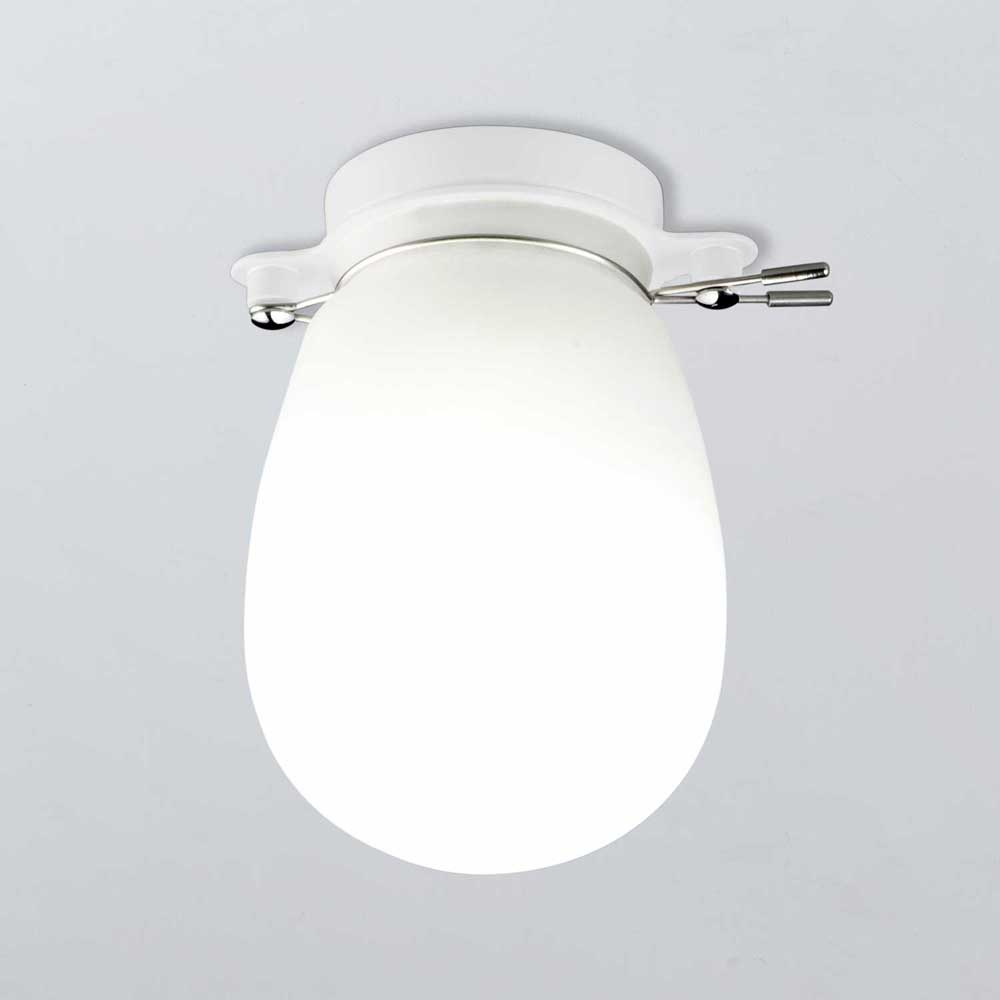

Surface-mounted light 6704 MLN Baño 9 C, white

The 6704 surface-mounted light from the Baño range by MILAN ILUMINACION features a die-cut sheet steel housing (1 mm) and an acid-etched diffuser made of hand-blown opal glass. Finish: textured white paint (RAL 9016).

1 × E14 socket, 230 V, for LED bulbs up to 5 W, dimmability, colour rendering and energy efficiency class depend on the bulb used; protection rating IP20 (for dry indoor use only); protection class I (with earth connection); height 130 mm; diameter 95 mm; ceiling rose 60 mm.

Not included: light bulb. Suitable model: 2833 (E14 LED 5 W, 440 lm, 2,700 K, non-dimmable).

Technical data

Light fitting
Item number6704Luminaire typesurface-mounted light
RangeBañoEAN8435146967047
Design and material
Finishtextured white paint finish (RAL 9016)HousingPunched sheet steel, 1 mm
DiffuserHand-blown opal glass, acid-etched
Electrical
Lamp holder1 × E14Rated voltage230 V
Max. power5 WDimmabilityDepends on the light source
Colour renderingdepends on the light sourceEnergy efficiency classDepends on the light source
Protection ratingIP20Protection classI
Dimensions
Height130 mmDiameter95 mm
Canopy60 mm
Suitable light source (not included)
2833E14 LED 5 W, 440 lm, 2,700 K, non-dimmable
Packaging and dispatch
Number of boxes1Carton 124.3 × 12.1 × 9.8 cm
Shipping weight0.5 kg

Delivery time approx. 1–2 weeks
Item no. 6704
Contact Us
Documents
6704 BAÑO Assembly instructions.pdf bano.pdf
