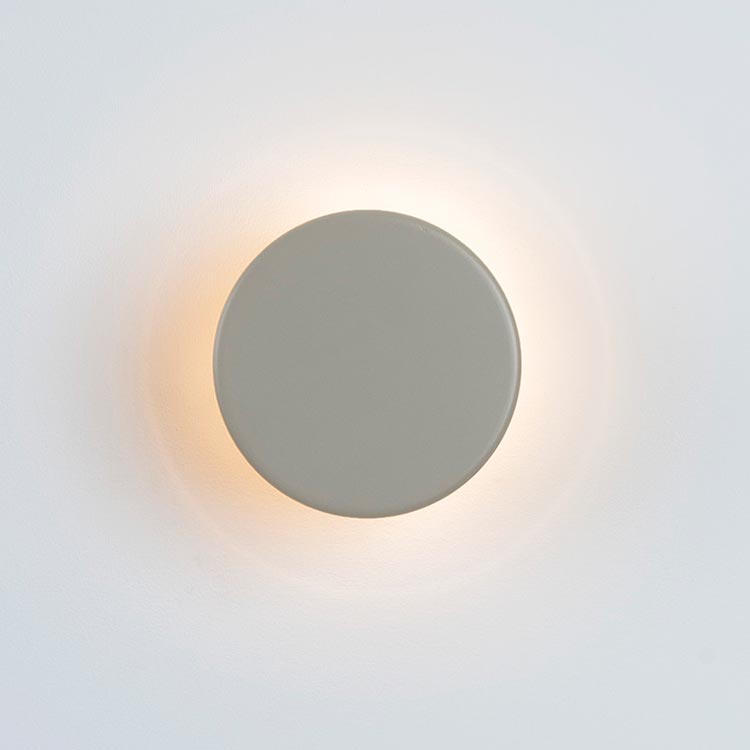

The 6752 wall-mounted light from the Peak range by MILAN ILUMINACION has a housing made from punched sheet steel (1 mm). Finish: mink textured paint (NCS S 2005-Y10R).
1 × PCB LED 12 W, 1,200 lm (100 lm/W), 2,700 K, CRI 90, 230 V, dimmable, energy efficiency class F, protection rating IP20 (for dry indoor use only), protection class I (with earth connection), height 90 mm, diameter 120 mm, ceiling rose 72 mm.
Tested dimmers: Eltako EUD61NPN dimmable 20–100 per cent, Casambi CBU-TED dimmable 20–100 per cent.
Technical specifications
| Luminaire |
|---|
| Item number | 6752 | Luminaire type | wall-mounted light |
| Range | Peak | EAN | 8435146967528 |
| Design and material |
|---|
| Finish | mink textured finish (NCS S 2005-Y10R) |
| Housing | Punched sheet steel, 1 mm |
| Light |
|---|
| Light source | 1 × PCB LED 12 W | Luminous flux | 1,200 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Electrical |
|---|
| Rated voltage | 230 V | Dimmability | dimmable |
| Energy efficiency class | F | Protection rating | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 90 mm | Diameter | 120 mm |
| Canopy | 72 mm |
| Packaging and dispatch |
|---|
| Number of cartons | 1 | Box 1 | 19 × 19 × 14.5 cm |
| Shipping weight | 0.7 kg |
