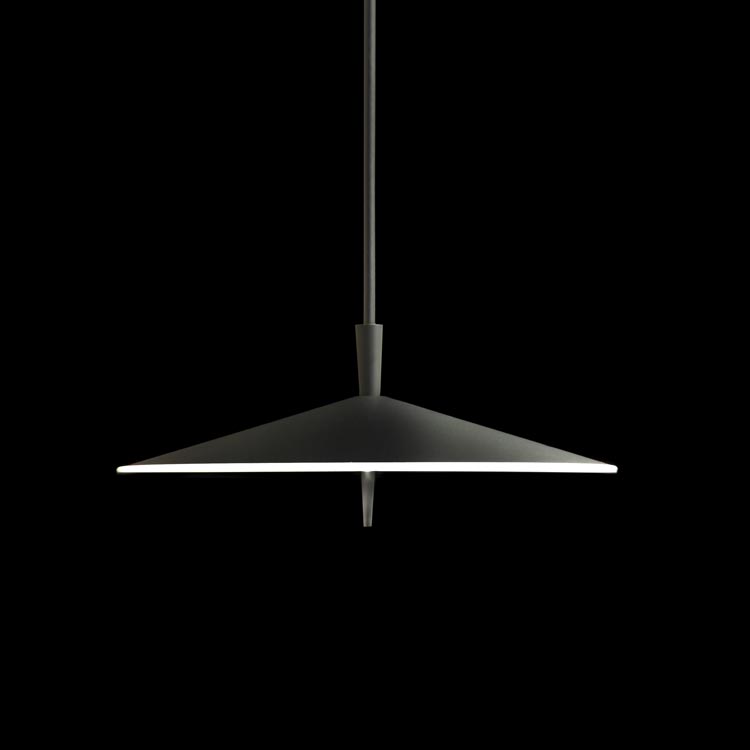

Pla 20 S, 6914 MLN pendant light, anthracite

The 6914 pendant light from the Pla range by MILAN ILUMINACION has a die-cast aluminium housing and an injection-moulded polycarbonate diffuser. Finish: textured anthracite grey (RAL 7016).

3 × DOB-LED 5 W, total power 15 W, 1,500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class F, Protection rating IP20 (for dry indoor use only), protection class II (insulated), height 3,000 mm, diameter 200 mm, length 86 mm.

Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.

Technical data

Luminaire
Item number6914Luminaire typependant light
RangePlaEAN8435146969140
Finish and material
Finishtextured anthracite grey (RAL 7016)
HousingDie-cast aluminiumDiffuserInjection-moulded polycarbonate
Light
Light source3 × DOB LED 5 WLuminous flux1,500 lm
Light colour2,700 KColour renderingCRI 90
Colour tolerance3-step MacAdam
Electrical
Rated voltage230 V
Dimmabilitydimmable with an LED-compatible phase-cut dimmer
Energy efficiency classFProtection ratingIP20
Protection classII
Dimensions
Height3,000 mmDiameter200 mm
Length86 mm
Packaging and dispatch
Number of cartons1Carton 124 × 24 × 13.5 cm
Shipping weight0.9 kg
Delivery time approx. 1–2 weeks
Item no. 6914
