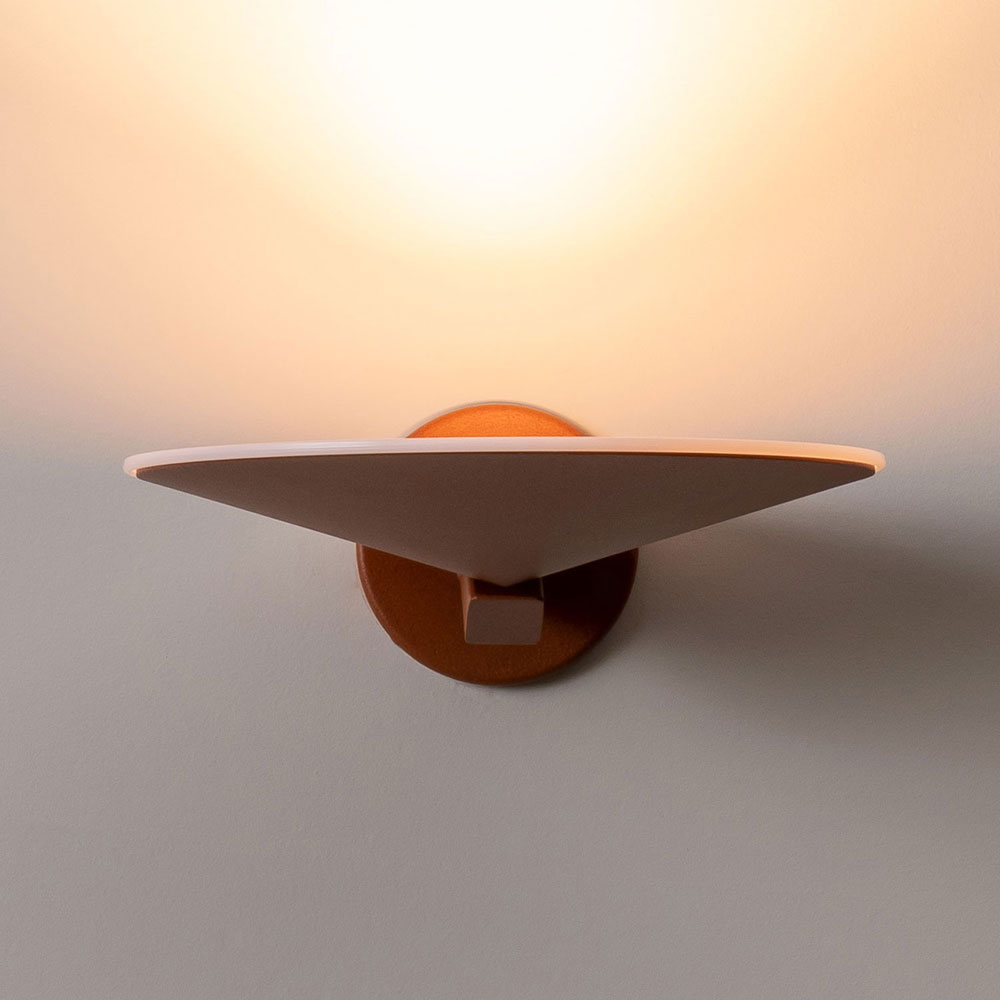

Wall-mounted light 7023 MLN Pla W in metallic copper

The 7023 wall-mounted light from the Pla range by MILAN ILUMINACION has a die-cast aluminium housing and an injection-moulded polycarbonate diffuser. Finish: metallic copper textured paint (D2525 Tanami sablé).

3 × DOB-LED 5 W, total power 15 W, 1,500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, dimmer in the cable, energy efficiency class F, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 75 mm, diameter 200 mm, canopy 75 mm.

Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.

Technical data

Luminaire
Item number7023Luminaire typewall-mounted light
RangePlaEAN8435146970238
Finish and material
Finishtextured metallic copper finish (D2525 Tanami sablé)
HousingDie-cast aluminiumDiffuserInjection-moulded polycarbonate
Light
Light source3 × DOB LED 5 WLuminous flux1,500 lm
Light colour2,700 KColour renderingCRI 90
Colour tolerance3-step MacAdam
Electrical
Rated voltage230 V
Dimmabilitydimmable with an LED-compatible phase-cut dimmer
Energy efficiency classFProtection ratingIP20
Protection classI
Dimensions
Height75 mmDiameter200 mm
Canopy75 mm
Packaging and dispatch
Number of boxes1Box 127 × 27 × 14.2 cm
Shipping weight0.9 kg
Delivery time approx. 1–2 weeks
Item no. 7023
