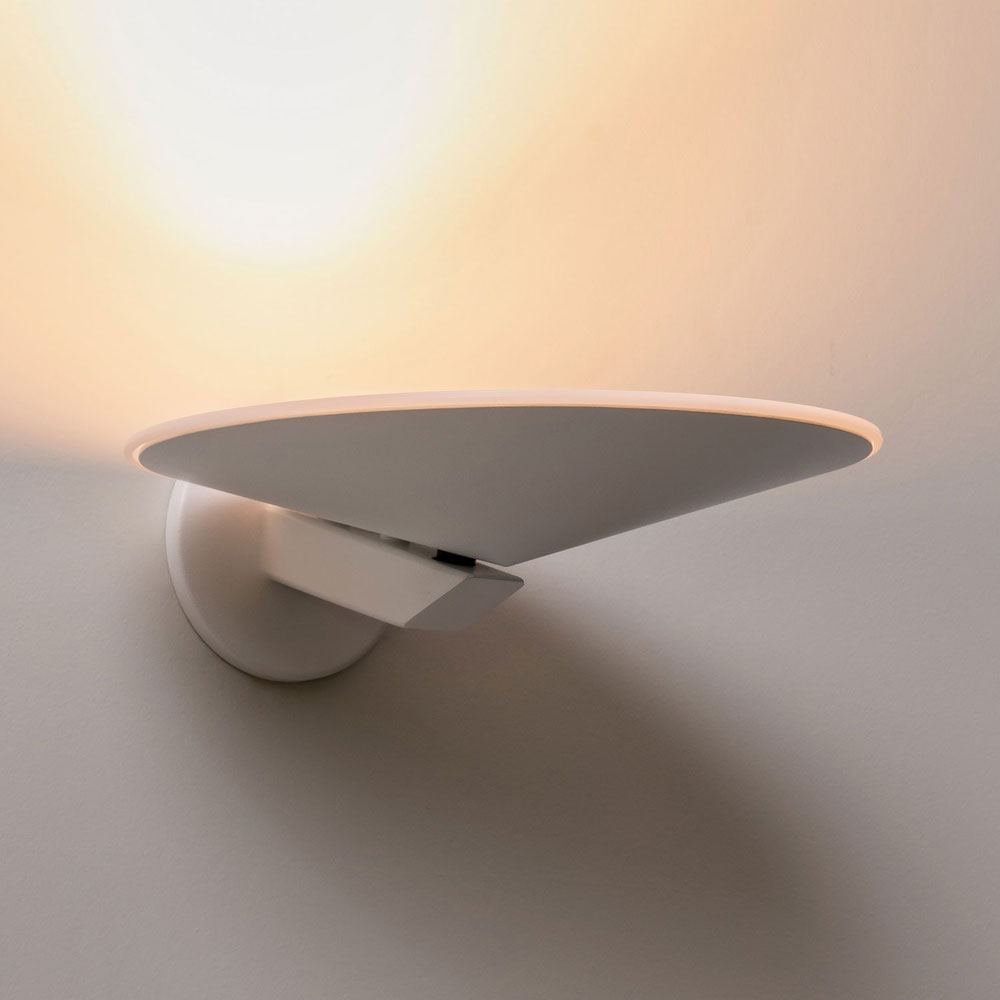

The 7021 wall-mounted light from the Pla range by MILAN ILUMINACION has a die-cast aluminium housing and an injection-moulded polycarbonate diffuser. Finish: textured white (RAL 9016).
3 × DOB-LED 5 W, total power 15 W, 1,500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED circuit board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, dimmer in the cable, energy efficiency class F, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 75 mm, diameter 200 mm, canopy 75 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 7021 | Luminaire type | wall-mounted light |
| Range | Pla | EAN | 8435146970214 |
| Design and material |
|---|
| Finish | textured white paint finish (RAL 9016) | Housing | Die-cast aluminium |
| Diffuser | Injection-moulded polycarbonate |
| Light |
|---|
| Light source | 3 × DOB LED 5 W | Luminous flux | 1,500 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | F | Protection rating | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 75 mm | Diameter | 200 mm |
| Canopy | 75 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 27 × 27 × 14.2 cm |
| Shipping weight | 0.9 kg |
