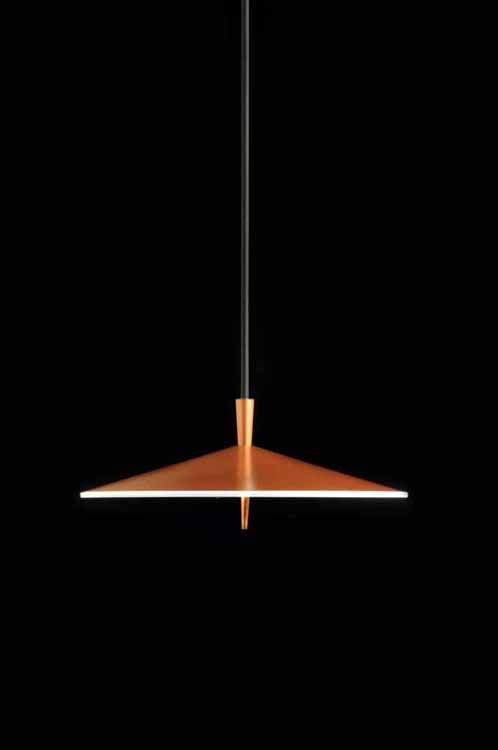

The 6594 pendant light from the Pla range by MILAN ILUMINACION has a housing made from punched sheet steel (1.2 mm) and a diffuser made from punched PMMA. Finish: metallic copper textured paint (D2525 Tanami sablé).
3 × DOB-LED 5 W, total system power 15 W, 1,500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED circuit board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class F, Protection rating IP20 (for dry indoor use only), protection class II (insulated), height 3,000 mm, diameter 200 mm, length 86 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 6594 | Luminaire type | pendant light |
| Series | Pla | EAN | 8435146965944 |
| Finish and material |
|---|
| Finish | textured metallic copper finish (D2525 Tanami sablé) |
| Housing | Stamped sheet steel, 1.2 mm |
| Diffuser | Die-cut polymethyl methacrylate (PMMA) |
| Light |
|---|
| Light source | 3 × DOB LED 5 W | Luminous flux | 1,500 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | F | Protection rating | IP20 |
| Protection class | II |
| Dimensions |
|---|
| Height | 3,000 mm | Diameter | 200 mm |
| Length | 86 mm |
| Packaging and dispatch |
|---|
| Number of cartons | 1 | Carton 1 | 27 × 27 × 14.2 cm |
| Shipping weight | 0.9 kg |
