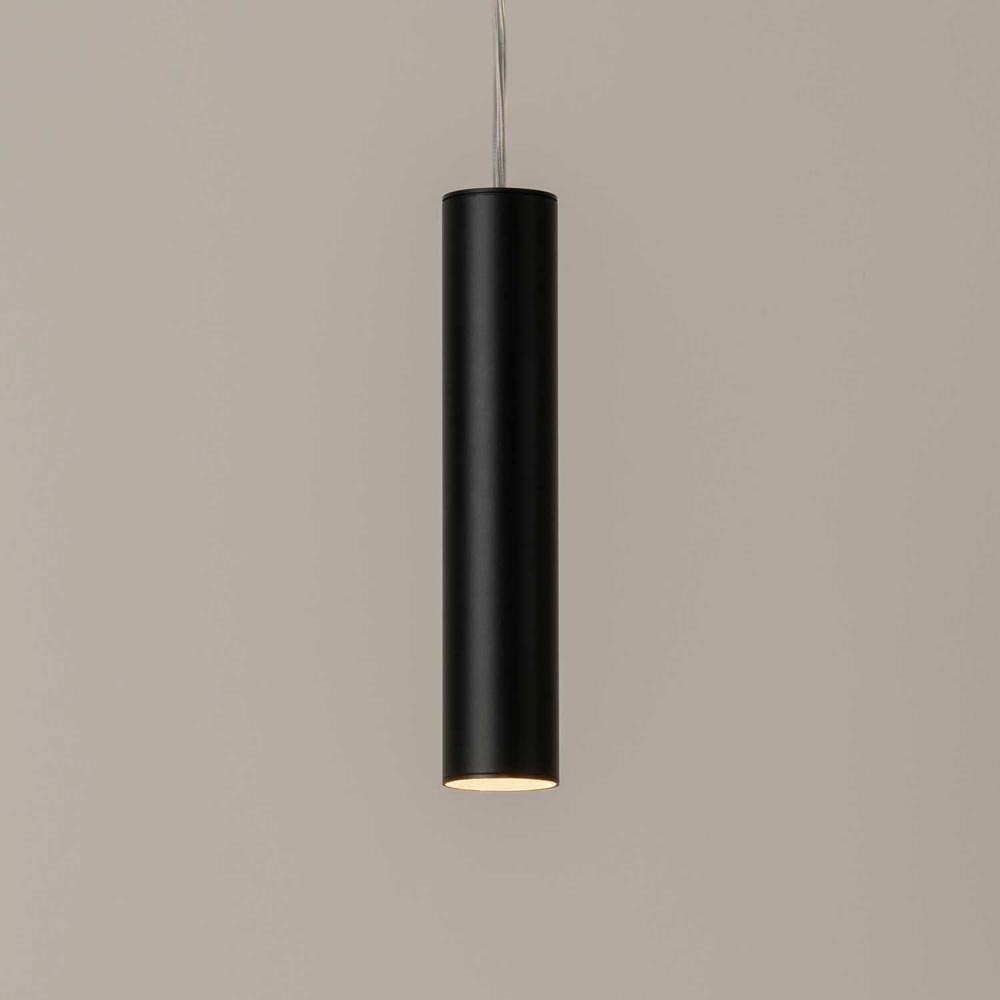

MLN Haul 40 AC S, black pendant light 6796

The 6796 pendant light from the Haul range by MILAN ILUMINACION has a housing made from extruded aluminium tubing. Finish: textured black (RAL 9005).

1 × DOB LED 5 W, 500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, beam angle 35°, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class E, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 203 mm, diameter 40 mm, maximum suspension height 3,000 mm.

Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.

Technical specifications

Luminaire
Item number6796Luminaire typependant light
FamilyHaulEAN8435146967962
Finish and material
Finishtextured black paint finish (RAL 9005)
HousingExtruded aluminium tube
Light
Light source1 × DOB LED 5 WLuminous flux500 lm
Light colour2,700 KColour renderingCRI 90
Colour tolerance3-step MacAdamBeam angle35°
Electrical
Rated voltage230 V
Dimmabilitydimmable with an LED-compatible phase-cut dimmer
Energy efficiency classEIngress protectionIP20
Protection classI
Dimensions
Height203 mmDiameter40 mm
Suspensionmax. 3,000 mm
Packaging and dispatch
Number of cartons1Carton 137.2 × 7.7 × 6.4 cm
Shipping weight0.6 kg

Delivery time approx. 1–2 weeks
Item no. 6796
Contact Us
Documents
6795-6796 HAUL Assembly instructions.pdf 6795-6796 HAUL Assembly instructions.pdf haul.pdf
