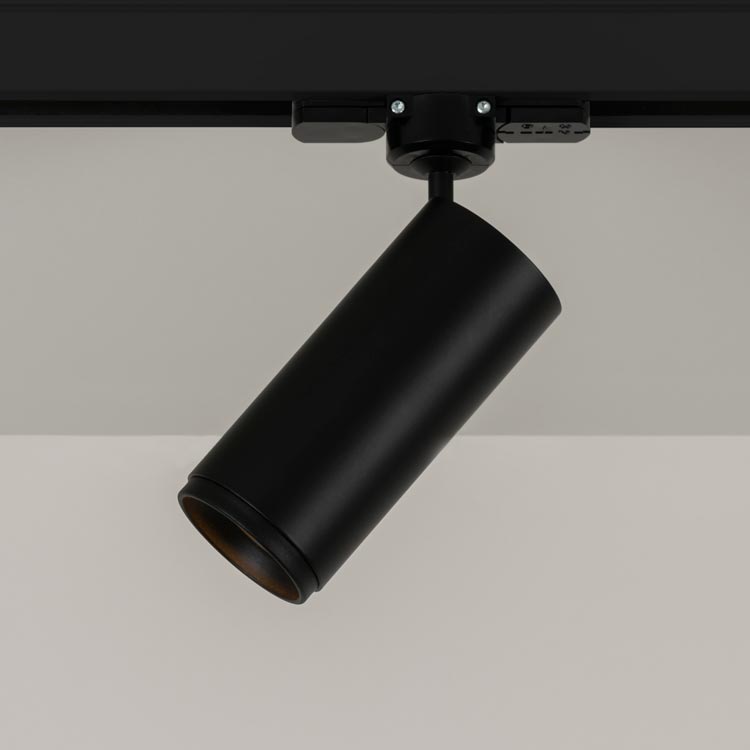

The 6776 track spotlight from the Haul range by MILAN ILUMINACION has a housing made from extruded aluminium tubing. Finish: textured black (RAL 9005).
1 × GU10 socket, 230 V, for LED bulbs up to 7 W, dimmability, colour rendering and energy efficiency class depend on the bulb used; adapter for 3-phase track (EUTRAC); protection rating IP20 (for dry indoor use only); protection class I (with earth connection); rotates 300°, tilts 90°, height 172 mm, diameter 55 mm, length 127 mm.
Not included: light source. Suitable model: 2098 (GU10 LED 7 W, 600 lm, 2,700 K, dimmable).
Technical specifications
| Luminaire |
|---|
| Item number | 6776 | Lighting type | track spotlight |
| Family | Haul | EAN | 8435146967764 |
| Design and material |
|---|
| Finish | textured black paint finish (RAL 9005) |
| Housing | Extruded aluminium tubing |
| Electrical |
|---|
| Lamp holder | 1 × GU10 | Rated voltage | 230 V |
| Max. power | 7 W | Dimmability | Depends on the light source |
| Colour rendering | Depends on the light source | Energy efficiency class | Depends on the light source |
| Protection rating | IP20 | Protection class | I |
| track | Adapter for 3-phase track (EUTRAC) |
| Motion |
|---|
| Movement | Rotates 300°, swivels 90° |
| Dimensions |
|---|
| Height | 172 mm | Diameter | 55 mm |
| Length | 127 mm |
| Suitable light source (not included) |
|---|
| 2098 | GU10 LED 7 W, 600 lm, 2,700 K, dimmable |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Carton 1 | 23.7 × 8 × 14.7 cm |
| Shipping weight | 0.5 kg |
