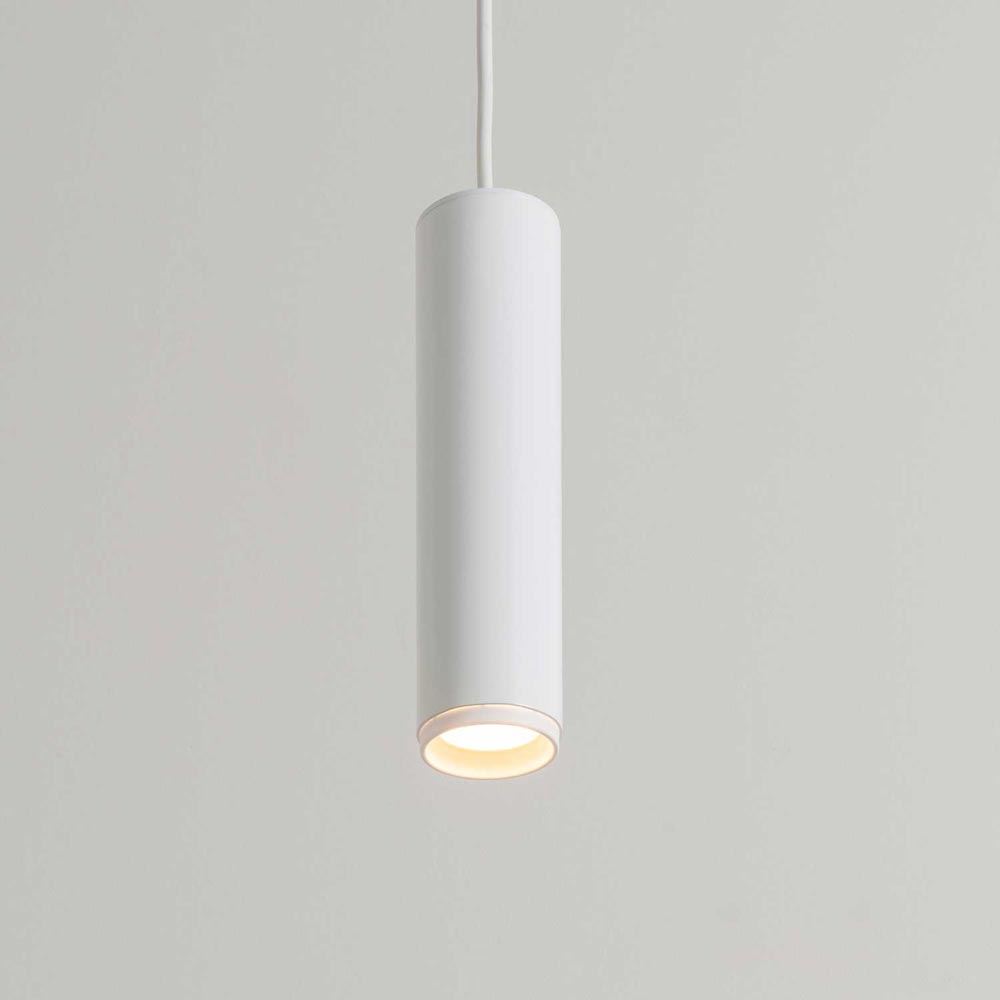

MLN Haul 55 AC S, white pendant light 6863

The 6863 pendant light from the Haul range by MILAN ILUMINACION has a housing made from extruded aluminium tubing. Finish: textured white (RAL 9016).

1 × DOB LED 7 W, 665 lm (95 lm/W), 2,700 K, CRI 90, 3-step MacAdam, beam angle 58°, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class E, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 210 mm, diameter 55 mm, maximum suspension height 3,000 mm.

Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.

Technical specifications

Luminaire
Item number6863Luminaire typependant light
FamilyHaulEAN8435146968631
Finish and material
Finishtextured white paint finish (RAL 9016)HousingExtruded aluminium tube
Light
Light source1 × DOB LED 7 WLuminous flux665 lm
Light colour2,700 KColour renderingCRI 90
Colour tolerance3-step MacAdamBeam angle58°
Electrical
Rated voltage230 V
Dimmabilitydimmable with an LED-compatible phase-cut dimmer
Energy efficiency classEProtection ratingIP20
Protection classI
Dimensions
Height210 mmDiameter55 mm
Suspensionmax. 3,000 mm
Packaging and dispatch
Number of cartons1Carton 131.5 × 11 × 10 cm
Shipping weight0.8 kg

Delivery time approx. 1–2 weeks
Item no. 6863
Contact Us
Documents
6863-6864 HAUL Assembly instructions.pdf haul.pdf
