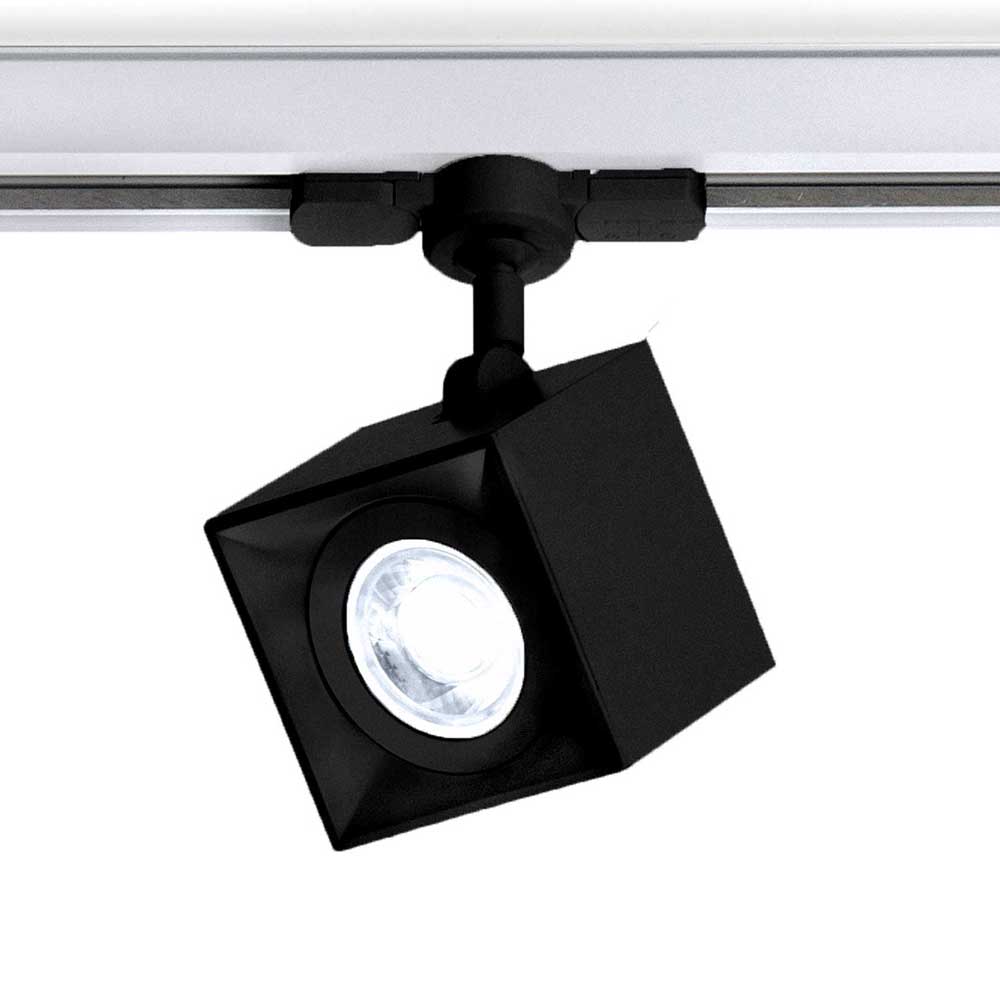

The 6164 track spotlight from the Dau range by MILAN ILUMINACION has an extruded aluminium housing. Finish: satin-black aluminium.
1 × GU10 socket, 230 V, for LED bulbs up to 7 W, dimmability, colour rendering and energy efficiency class depend on the bulb used; adapter for 3-phase track (EUTRAC); protection rating IP20 (for dry indoor use only); protection class I (with earth connection); Rotates 300°, tilts 90°, height 162 mm, length 80 mm, width 80 mm.
Not included: light source. Suitable model: 2098 (GU10 LED 7 W, 600 lm, 2,700 K, dimmable).
Technical specifications
| Luminaire |
|---|
| Item number | 6164 | Lighting type | track spotlight |
| Family | Dau | EAN | 8435146961649 |
| Design and material |
|---|
| Finish | Satin-finished black aluminium | Housing | Extruded aluminium |
| Other materials | Die-cast aluminium |
| Electrical components |
|---|
| Lamp holder | 1 × GU10 | Rated voltage | 230 V |
| Max. power | 7 W | Dimmability | Depends on the light source |
| Colour rendering | Depends on the light source | Energy efficiency class | Depends on the light source |
| Protection rating | IP20 | Protection class | I |
| track | Adapter for 3-phase track (EUTRAC) |
| Motion |
|---|
| Movement | Rotates 300°, swivels 90° |
| Dimensions |
|---|
| Height | 162 mm | Length | 80 mm |
| Width | 80 mm |
| Suitable light source (not included) |
|---|
| 2098 | GU10 LED 7 W, 600 lm, 2,700 K, dimmable |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 24.3 × 12.1 × 9.8 cm |
| Shipping weight | 0.6 kg |
