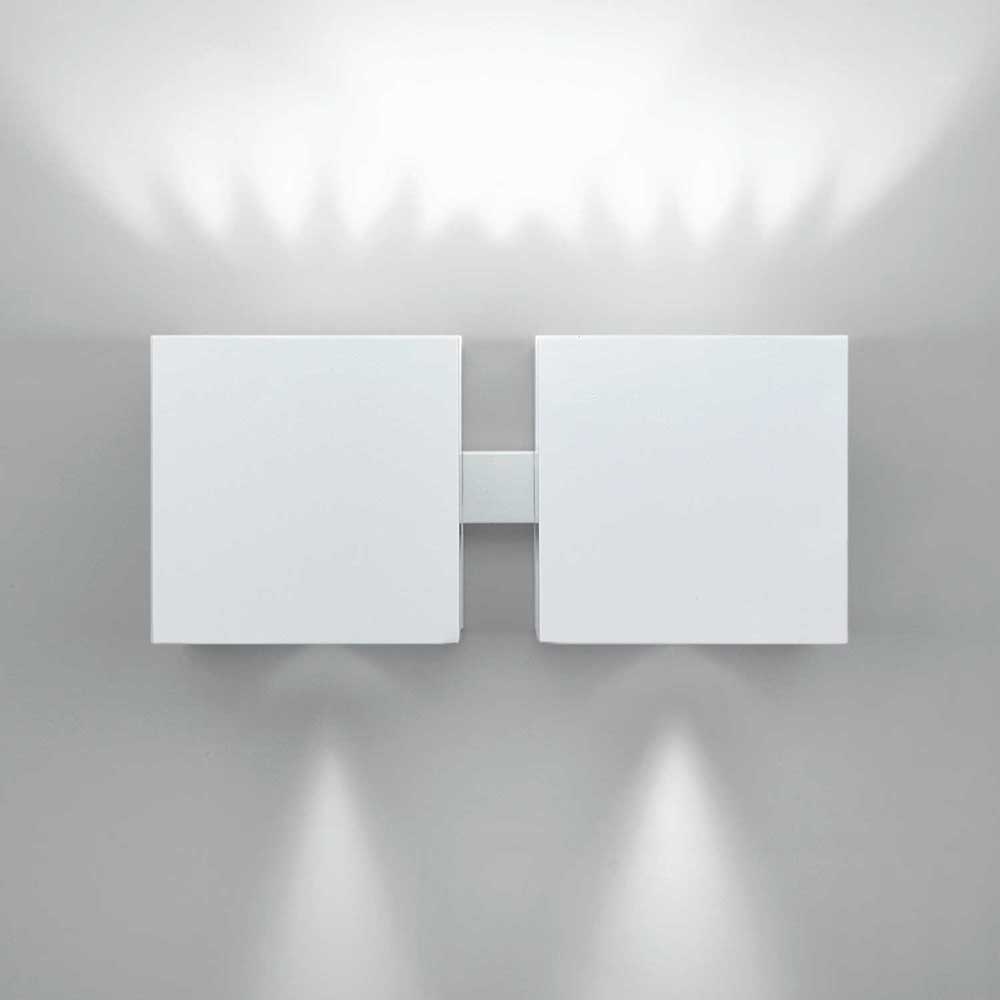

The 4022 wall-mounted light from the Dau range by MILAN ILUMINACION has an extruded aluminium housing. Finish: textured white (RAL 9016).
2 × G9 sockets, 230 V, for LED bulbs up to 4.8 W; dimmability, colour rendering and energy efficiency class depend on the bulb used; protection rating IP20 (for dry indoor use only); protection class I (with earth connection); Height 80 mm, projection 101 mm, width 180 mm, ceiling rose 180 × 180 mm.
Not included: light source. Suitable bulbs are 2024 (G9 LED 4.8 W, 600 lm, 2,700 K, non-dimmable) and 2015 (G9 LED 4 W, 480 lm, 2,700 K, dimmable).
Technical specifications
| Luminaire |
|---|
| Item number | 4022 | Luminaire type | wall-mounted light |
| Range | Dau | EAN | 8435146940224 |
| Finish and material |
|---|
| Finish | textured white paint finish (RAL 9016) | Housing | Extruded aluminium |
| Other materials | Die-cast aluminium |
| Electrical |
|---|
| Lamp holder | 2 × G9 | Rated voltage | 230 V |
| Max. power | 4.8 W | Dimmability | Depends on the light source |
| Colour rendering | Depends on the light source | Energy efficiency class | Depends on the light source |
| Ingress protection | IP20 | Protection class | I |
| Dimensions |
|---|
| Height | 80 mm | Projection | 101 mm |
| Width | 180 mm | Canopy | 180 × 180 mm |
| Suitable light source (not included) |
|---|
| 2024 | G9 LED 4.8 W, 600 lm, 2,700 K, non-dimmable |
| 2015 | G9 LED 4 W, 480 lm, 2,700 K, dimmable |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 24.3 × 12.1 × 9.8 cm |
| Shipping weight | 1.1 kg |
