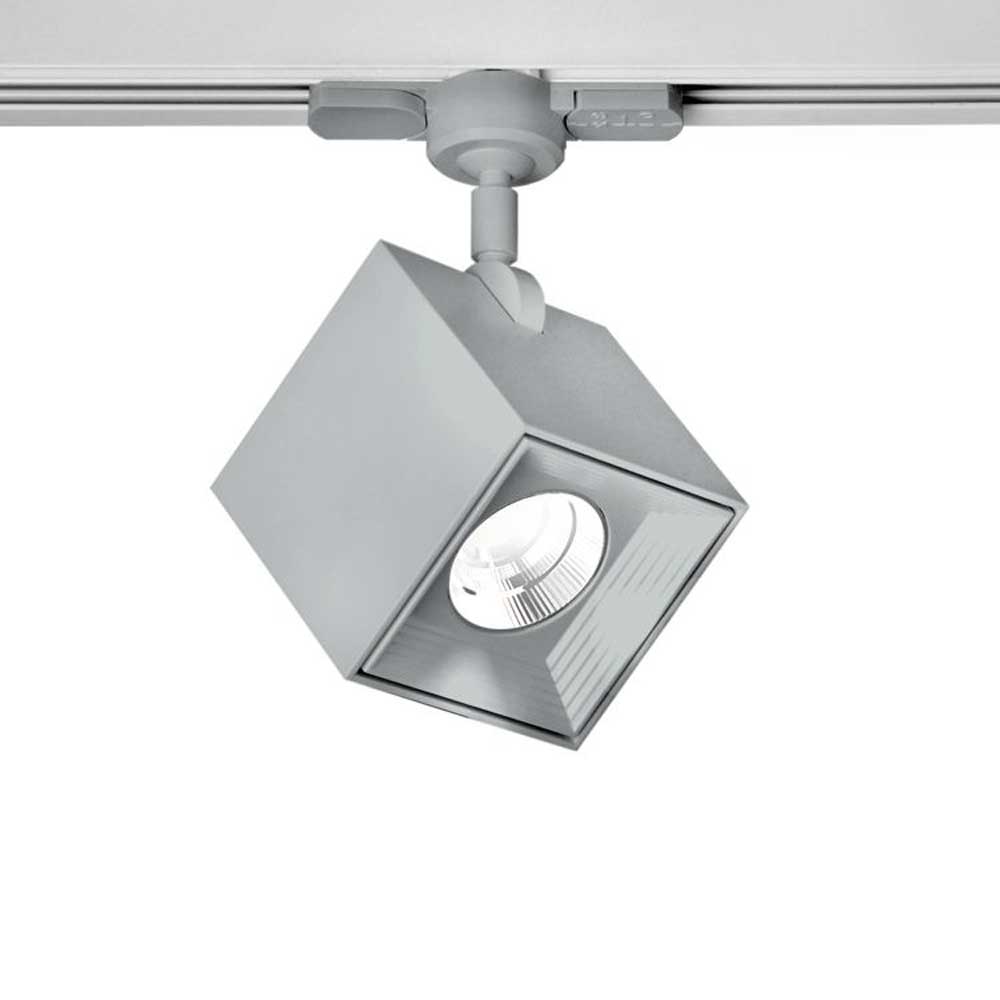

The 6886 track spotlight from the Dau range by MILAN ILUMINACION has an extruded aluminium housing. Finish: brushed, anodised aluminium.
1 × COB LED 12.7 W, 1,274 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, beam angle 50°, constant-current driver included, 230 V, dimmable 10–100% with leading-edge or trailing-edge dimmers, energy efficiency class E, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), rotates 300°, tilts 90°, height 184 mm, length 80 mm, width 80 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical specifications
| Light fitting |
|---|
| Item number | 6886 | Luminaire type | track spotlight |
| Family | Dau | EAN | 8435146968860 |
| Design and material |
|---|
| Finish | Brushed, anodised aluminium | Housing | Extruded aluminium |
| Other materials | Die-cast aluminium |
| Light |
|---|
| Light source | 1 × COB LED 12.7 W | Luminous flux | 1,274 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam | Beam angle | 50° |
| Electrical specifications |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable 10–100% with leading-edge or trailing-edge dimmers |
| Energy efficiency class | E | Protection rating | IP20 |
| Protection class | I |
| Motion |
|---|
| Movement | Rotates 300°, swivels 90° |
| Dimensions |
|---|
| Height | 184 mm | Length | 80 mm |
| Width | 80 mm |
| Packaging and dispatch |
|---|
| Number of cartons | 1 | Carton 1 | 24.3 × 12.1 × 9.8 cm |
| Shipping weight | 0.6 kg |
