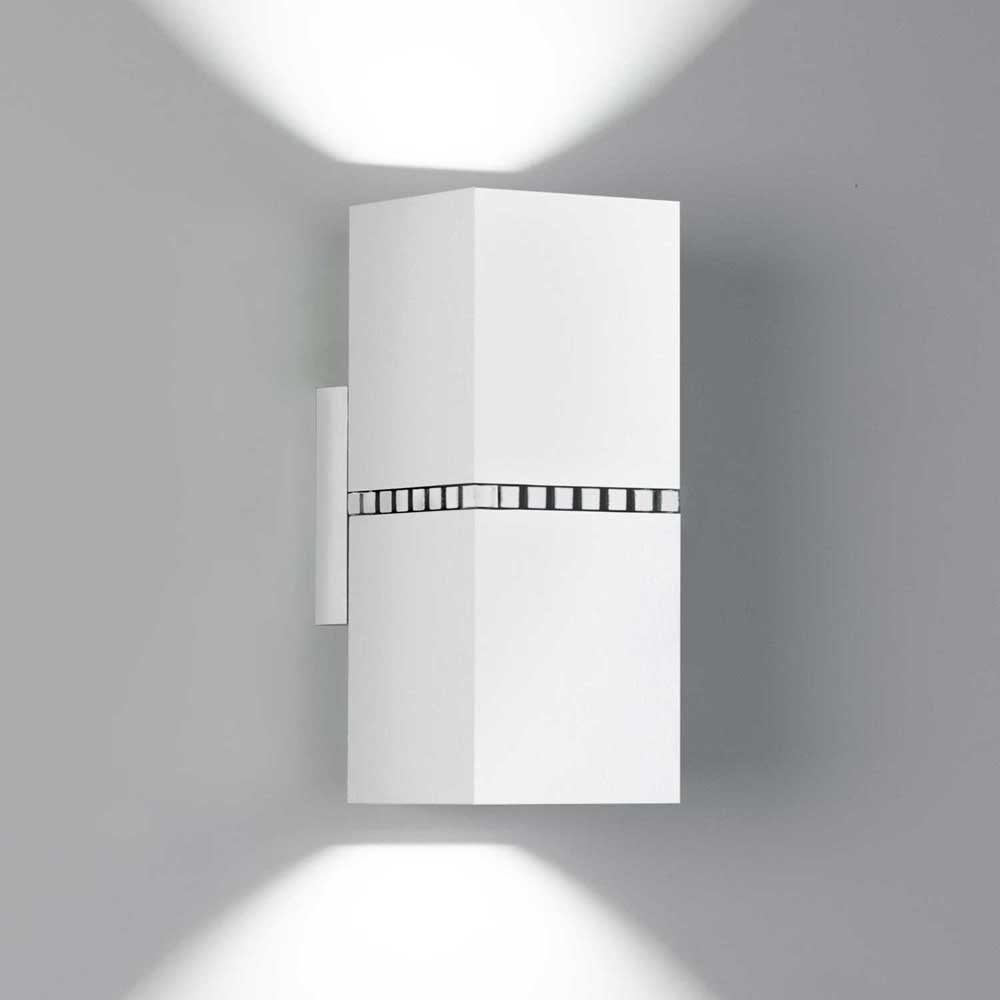

The 6837 wall-mounted light from the Dau range by MILAN ILUMINACION has an extruded aluminium housing. Finish: textured white (RAL 9016).
2 × COB LED 12.7 W, system power 25.4 W, 1,274 lm (50 lm/W), 2,700 K, CRI 90, 3-step MacAdam, beam angle 50°, Constant-current driver included, 230 V, dimmable 10–100 per cent with leading-edge or trailing-edge dimmers, energy efficiency class E, protection rating IP20 (for dry indoor use only), protection class I (with earth connection), Height 200 mm, projection 101 mm, width 80 mm, ceiling rose 80 × 80 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
DALI: with 2 × DALI driver 2366 instead of the constant-current driver (to be ordered separately).
Technical data
| Luminaire |
|---|
| Item number | 6837 | Luminaire type | wall-mounted light |
| Range | Dau | EAN | 8435146968372 |
| Design and material |
|---|
| Finish | textured white paint finish (RAL 9016) | Housing | Extruded aluminium |
| Other materials | Die-cast aluminium |
| Light |
|---|
| Light source | 2 × COB LED 12.7 W | Luminous flux | 1,274 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam | Beam angle | 50° |
| Electrical specifications |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable 10–100% with leading-edge or trailing-edge dimmers |
| Energy efficiency class | E | Protection rating | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 200 mm | Projection | 101 mm |
| Width | 80 mm | Canopy | 80 × 80 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 24.3 × 12.1 × 9.8 cm |
| Shipping weight | 1.3 kg |
