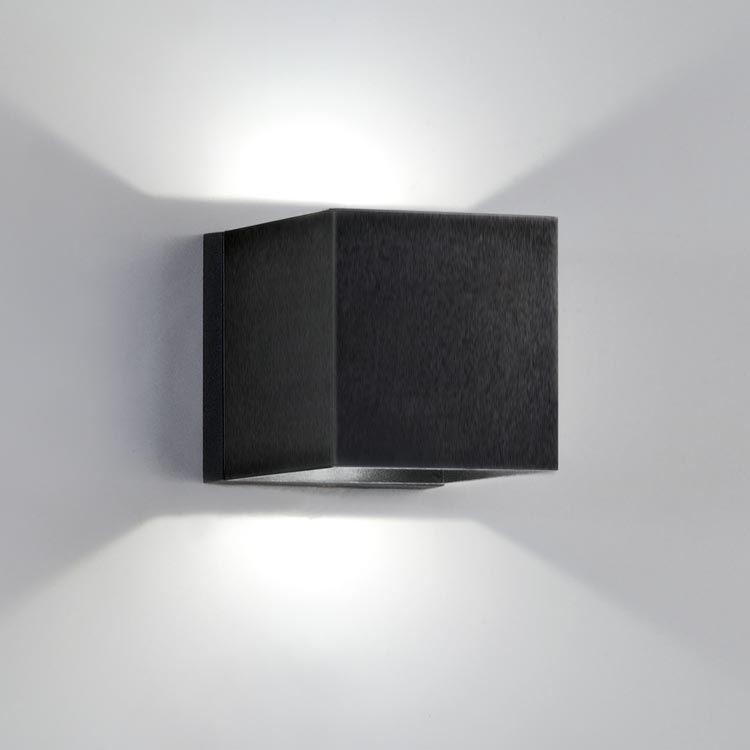

The 6894 wall-mounted light from the Dau range by MILAN ILUMINACION has an extruded aluminium housing. Finish: textured black (RAL 9005).
2 × DOB-LED 5 W, system power 10 W, 1,000 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class F, Protection rating IP20 (for dry indoor use only), protection class I (with earth connection), height 50 mm, projection 60 mm, width 50 mm, canopy 50 × 50 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 6894 | Luminaire type | wall-mounted light |
| Range | Dau | EAN | 8435146968945 |
| Finish and material |
|---|
| Finish | textured black paint finish (RAL 9005) |
| Housing | Extruded aluminium | Other materials | Die-cast aluminium |
| Light |
|---|
| Light source | 2 × DOB LED 5 W | Luminous flux | 1,000 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | F | Protection rating | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 50 mm | Projection | 60 mm |
| Width | 50 mm | Canopy | 50 × 50 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 15.7 × 9.2 × 9.3 cm |
| Shipping weight | 0.2 kg |
