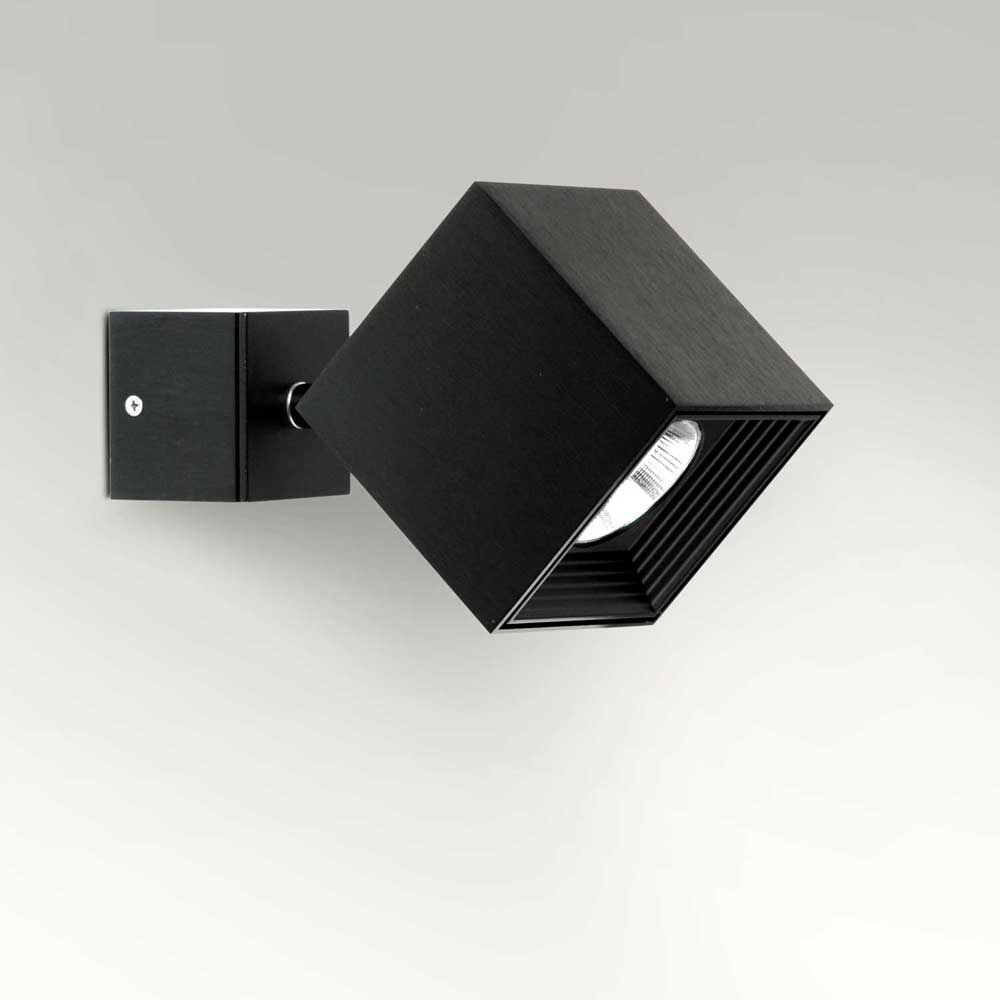

The 6882 wall-mounted light from the Dau range by MILAN ILUMINACION has an extruded aluminium housing. Finish: satin-black aluminium.
1 × COB LED 12.7 W, 1,274 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, beam angle 50°, Constant-current driver included, 230 V, dimmable 10–100% with leading-edge or trailing-edge dimmers, energy efficiency class E, protection rating IP20 (for dry indoor use only), protection class I (with earth connection), Rotates 300°, tilts 90°, height 184 mm, projection 80 mm, width 80 mm, ceiling rose 50×50 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
DALI: with 1 × DALI driver 2366 instead of the constant-current driver (to be ordered separately).
Technical data
| Luminaire |
|---|
| Item number | 6882 | Luminaire type | wall-mounted light |
| Range | Dau | EAN | 8435146968822 |
| Finish and material |
|---|
| Finish | Satin-finished black aluminium | Housing | Extruded aluminium |
| Other materials | Die-cast aluminium |
| Light |
|---|
| Light source | 1 × COB LED 12.7 W | Luminous flux | 1,274 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam | Beam angle | 50° |
| Electrical specifications |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable 10–100% with leading-edge or trailing-edge dimmers |
| Energy efficiency class | E | Protection rating | IP20 |
| Protection class | I |
| Motion |
|---|
| Movement | Rotates 300°, swivels 90° |
| Dimensions |
|---|
| Height | 184 mm | Projection | 80 mm |
| Width | 80 mm | Canopy | 50 × 50 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Carton 1 | 24.3 × 12.1 × 9.8 cm |
| Shipping weight | 0.8 kg |
