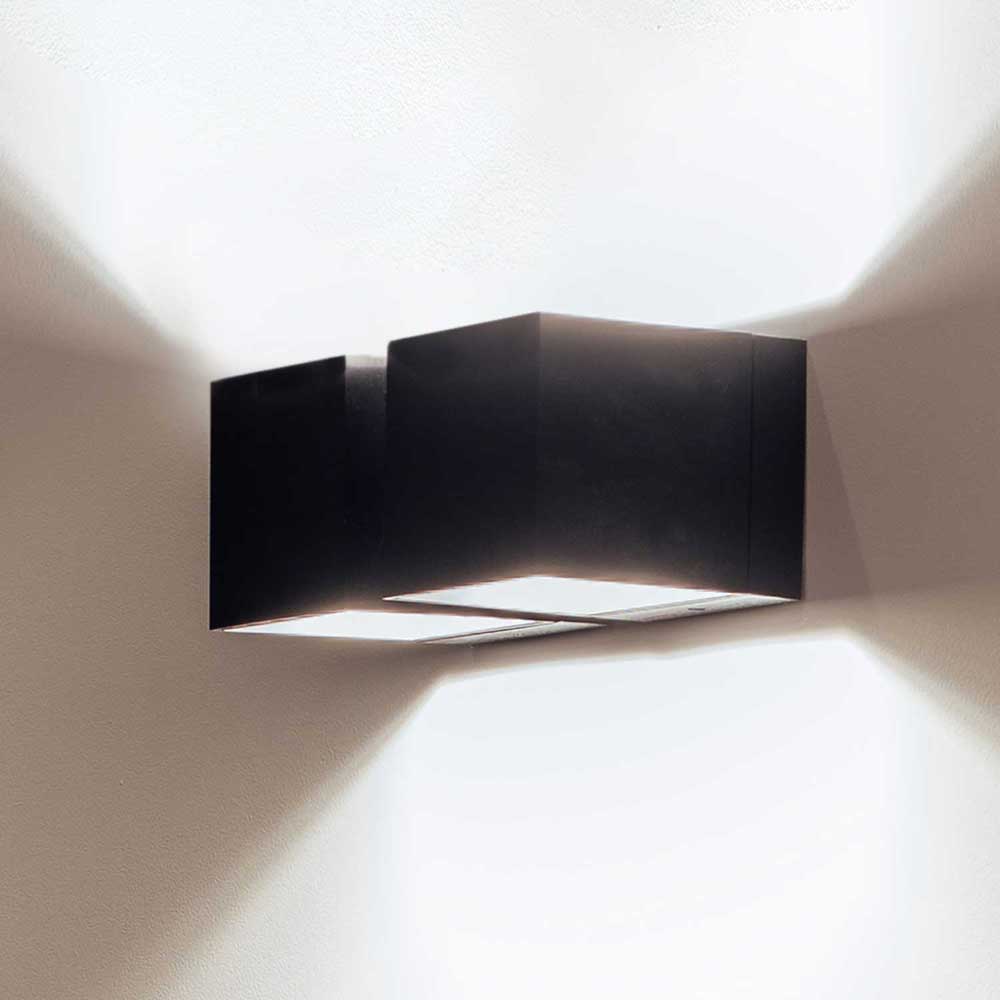

The 6829 wall-mounted light from the Dau range by MILAN ILUMINACION has an extruded aluminium housing. Finish: satin-finished black aluminium.
4 × DOB-LED 7 W, total power 28 W, 2,660 lm (95 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class E, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 80 mm, projection 101 mm, width 180 mm, ceiling rose 180 × 80 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 6829 | Luminaire type | wall-mounted light |
| Range | Dau | EAN | 8435146968297 |
| Finish and material |
|---|
| Finish | Satin-finished black aluminium | Housing | Extruded aluminium |
| Other materials | Die-cast aluminium |
| Light |
|---|
| Light source | 4 × DOB LED 7 W | Luminous flux | 2,660 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | E | Ingress protection | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 80 mm | Projection | 101 mm |
| Width | 180 mm | Canopy | 180 × 80 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 24.3 × 12.1 × 9.8 cm |
| Shipping weight | 1.1 kg |
