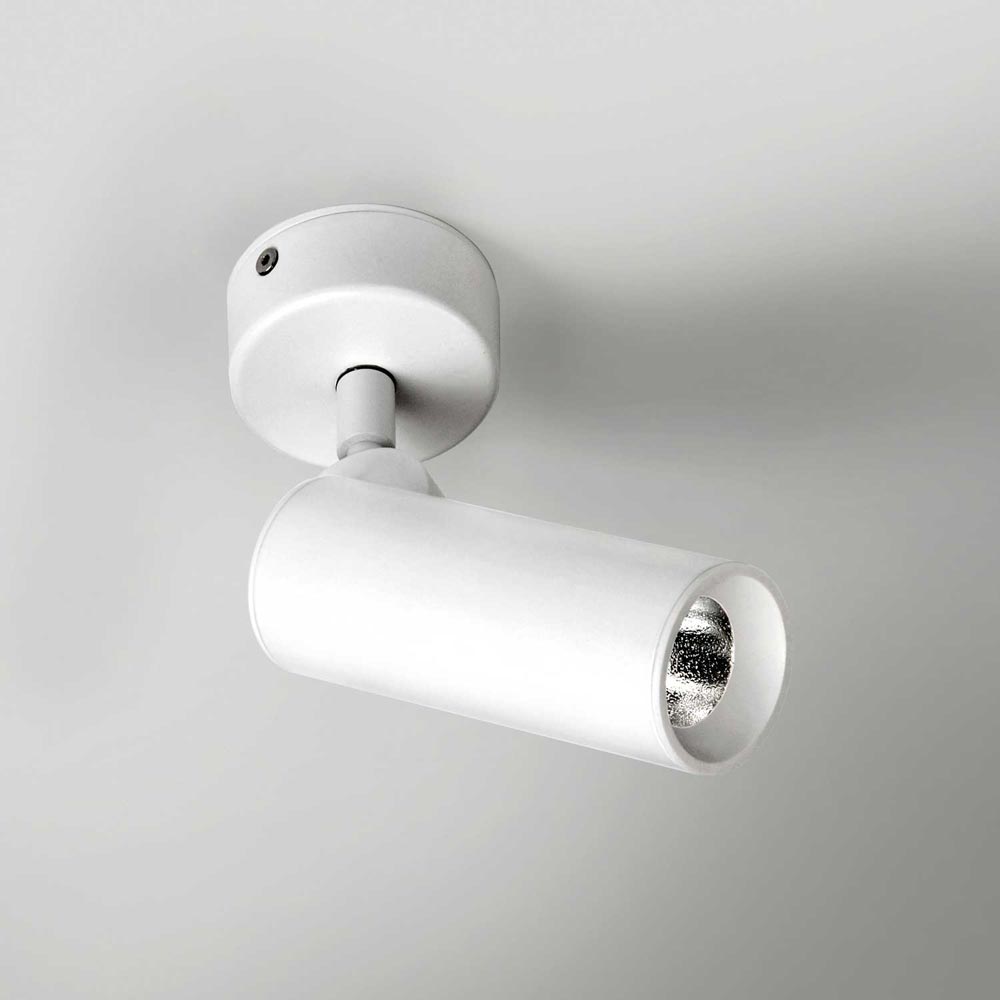

The 6787 wall-mounted light from the Haul range by MILAN ILUMINACION has a housing made from extruded aluminium tubing. Finish: textured white (RAL 9016).
1 × DOB LED 5 W, 500 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, beam angle 35°, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class E, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), rotates 300°, tilts 90°, height 161 mm, diameter 40 mm, projection 103 mm, Ceiling rose 55 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 6787 | Luminaire type | wall-mounted light |
| Range | Haul | EAN | 8435146967870 |
| Design and material |
|---|
| Finish | textured white paint finish (RAL 9016) | Housing | Extruded aluminium tube |
| Light |
|---|
| Light source | 1 × DOB LED 5 W | Luminous flux | 500 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam | Beam angle | 35° |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | E | Protection rating | IP20 |
| Protection class | I |
| Motion |
|---|
| Movement | Rotates 300°, tilts 90° |
| Dimensions |
|---|
| Height | 161 mm | Diameter | 40 mm |
| Projection | 103 mm | Canopy | 55 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 16.5 × 13.5 × 8.9 cm |
| Shipping weight | 0.4 kg |
