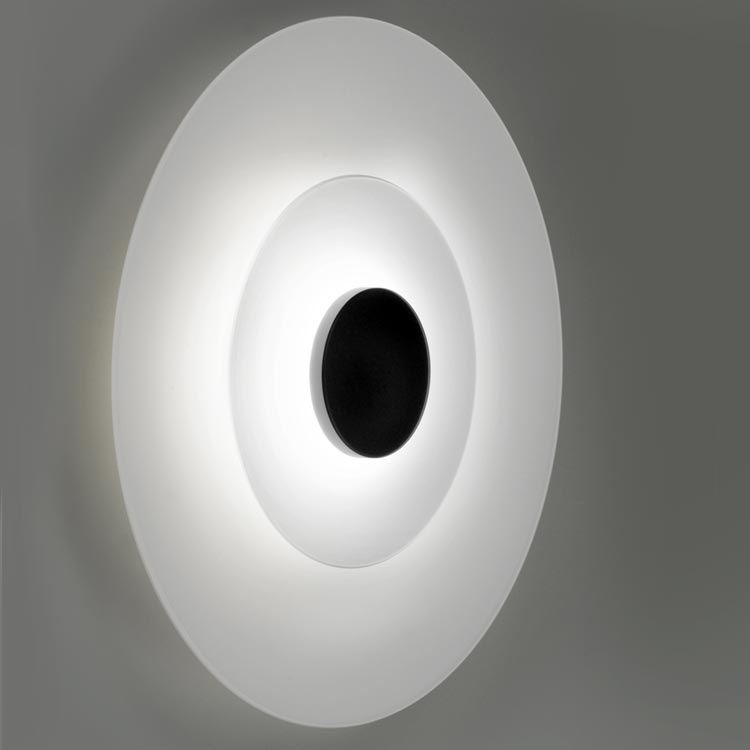

The 6685 wall-mounted light from the Halos range by MILAN ILUMINACION features a housing made from punched sheet steel (1 mm) and a diffuser made from acid-etched flat glass (3 mm). Finish: textured black paint (RAL 9005).
1 × PCB LED 12 W, 1,200 lm (100 lm/W), 2,700 K, CRI 90, 230 V, dimmable, switch in the cable, energy efficiency class F, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 63 mm, diameter 365 mm, canopy 102 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical specifications
| Luminaire |
|---|
| Item number | 6685 | Luminaire type | wall-mounted light |
| Family | Halos | EAN | 8435146966859 |
| Design and material |
|---|
| Finish | textured black finish (RAL 9005) |
| Housing | Punched sheet steel, 1 mm | Diffuser | Flat glass, acid-etched, 3 mm |
| Light |
|---|
| Light source | 1 × PCB LED 12 W | Luminous flux | 1,200 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Electrical |
|---|
| Rated voltage | 230 V | Dimmability | dimmable |
| Energy efficiency class | F | Protection rating | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 63 mm | Diameter | 365 mm |
| Canopy | 102 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 41 × 41 × 15 cm |
| Shipping weight | 2.4 kg |
