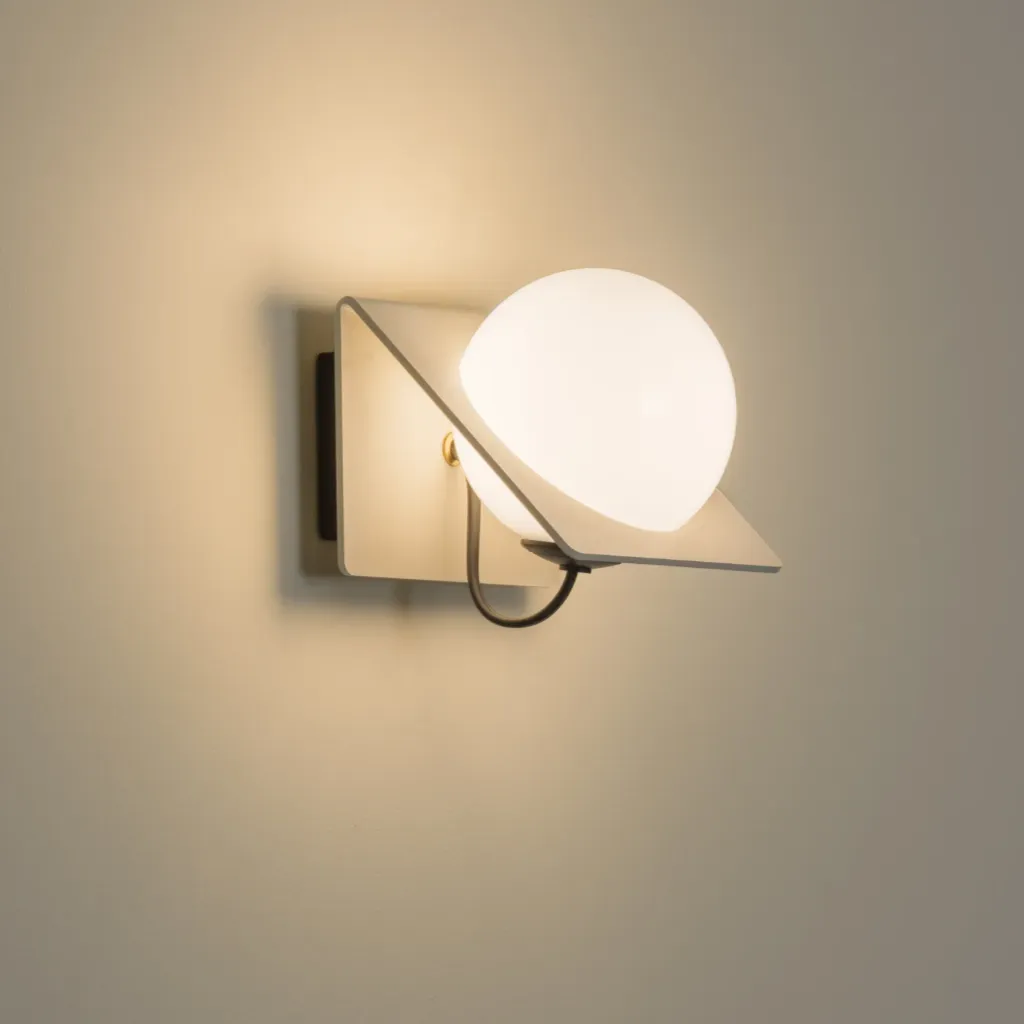

The 7140 wall-mounted light from the Fold range by MILAN ILUMINACION has a housing made from punched sheet steel (1 mm) and a glossy diffuser made from hand-blown opal glass. Finish: textured mink (NCS S 2005-Y10R).
1 × G9 socket, 230 V, for LED bulbs up to 4.8 W; dimmability, colour rendering and energy efficiency class depend on the bulb used; protection rating IP20 (for dry indoor use only); protection class I (with earth connection); Height 95 mm, projection 127 mm, width 95 mm, canopy 100 × 65 mm.
Not included: light source. Suitable bulbs are 2024 (G9 LED 4.8 W, 600 lm, 2,700 K, non-dimmable) and 2015 (G9 LED 4 W, 480 lm, 2,700 K, dimmable).
Technical specifications
| Luminaire |
|---|
| Item number | 7140 | Luminaire type | wall-mounted light |
| Range | Fold | EAN | 8435146971402 |
| Design and material |
|---|
| Finish | mink textured lacquer (NCS S 2005-Y10R) |
| Housing | Punched sheet steel, 1 mm | Diffuser | Hand-blown opal glass, glossy |
| Electrical |
|---|
| Socket | 1 × G9 | Rated voltage | 230 V |
| Max. power | 4.8 W | Dimmability | Depends on the light source |
| Colour rendering | Depends on the light source | Energy efficiency class | Depends on the light source |
| Protection rating | IP20 | Protection class | I |
| Dimensions |
|---|
| Height | 95 mm | Projection | 127 mm |
| Width | 95 mm | Canopy | 100 × 65 mm |
| Suitable light bulbs (not included) |
|---|
| 2024 | G9 LED 4.8 W, 600 lm, 2,700 K, non-dimmable |
| 2015 | G9 LED 4 W, 480 lm, 2,700 K, dimmable |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 19 × 19 × 14.5 cm |
| Shipping weight | 1.2 kg |
