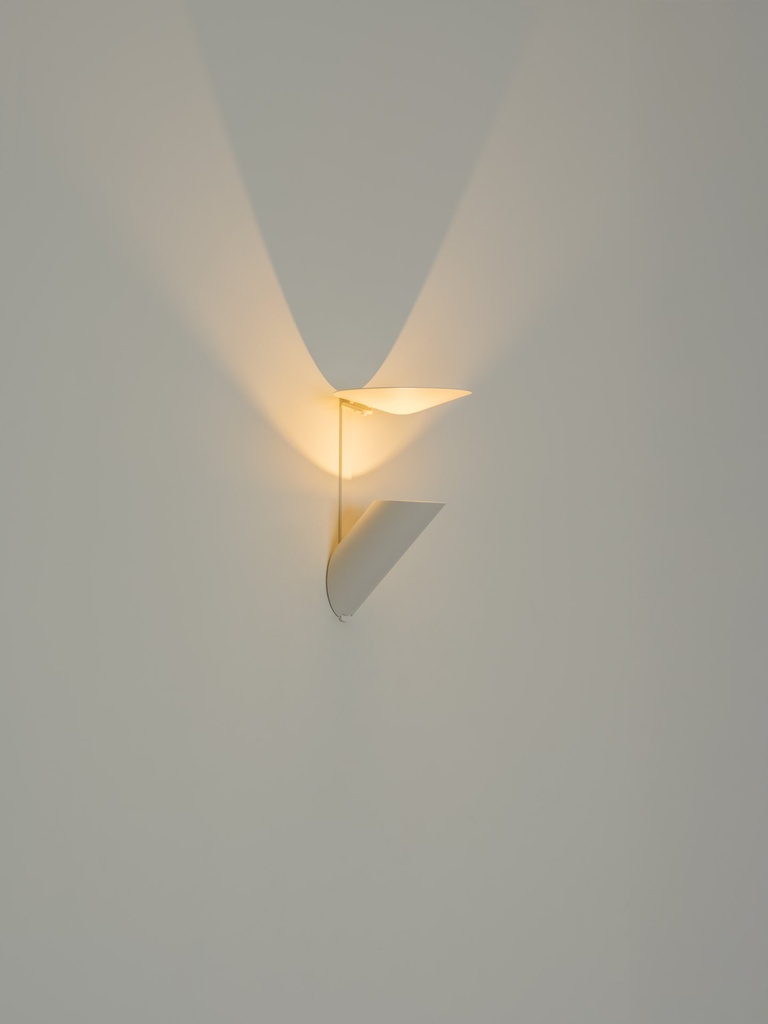

The 7109 wall-mounted light from the Mokka range by MILAN ILUMINACION has a housing made from punched sheet steel (1 mm). Finish: mink textured paint (NCS S 2005-Y10R).
1 × COB LED 12.7 W, 1,274 lm (100 lm/W), 2,700 K, CRI 90, 3-step MacAdam, constant-current driver included, 230 V, dimmable 10–100 per cent with leading-edge or trailing-edge dimmers, energy efficiency class E, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 221 mm, projection 221 mm, width 138 mm, canopy 51 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical specifications
| Luminaire |
|---|
| Item number | 7109 | Luminaire type | wall-mounted light |
| Range | Mokka | EAN | 8435146971099 |
| Design and material |
|---|
| Finish | mink textured lacquer (NCS S 2005-Y10R) |
| Housing | Punched sheet steel, 1 mm |
| Light |
|---|
| Light source | 1 × COB LED 12.7 W | Luminous flux | 1,274 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable 10–100% with leading-edge or trailing-edge dimmers |
| Energy efficiency class | E | Protection rating | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 221 mm | Projection | 221 mm |
| Width | 138 mm | Canopy | 51 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 26 × 26 × 20 cm |
| Shipping weight | 1 kg |
