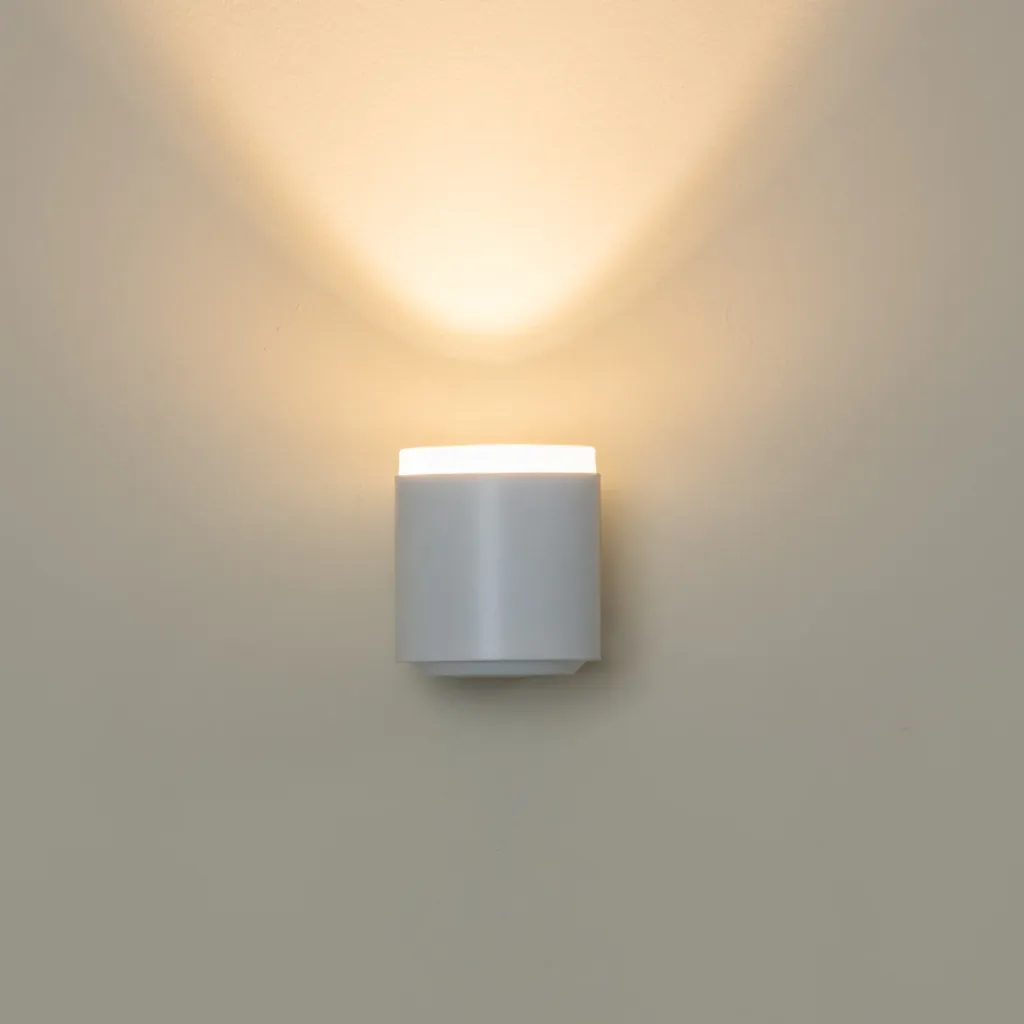

The 7120 wall-mounted light from the Sip range by MILAN ILUMINACION has a die-cast aluminium housing. Finish: textured white (RAL 9016).
1 × DOB LED 7 W, 655 lm (94 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, switch in the cable, energy efficiency class E, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 61 mm, diameter 56 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical data
| Luminaire |
|---|
| Item number | 7120 | Luminaire type | wall-mounted light |
| Range | Sip | EAN | 8435146971204 |
| Design and material |
|---|
| Finish | textured white paint finish (RAL 9016) | Housing | Die-cast aluminium |
| Light |
|---|
| Light source | 1 × DOB LED 7 W | Luminous flux | 655 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | E | Ingress protection | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 61 mm | Diameter | 56 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Carton 1 | 15.7 × 9.2 × 9.3 cm |
| Shipping weight | 0.4 kg |
