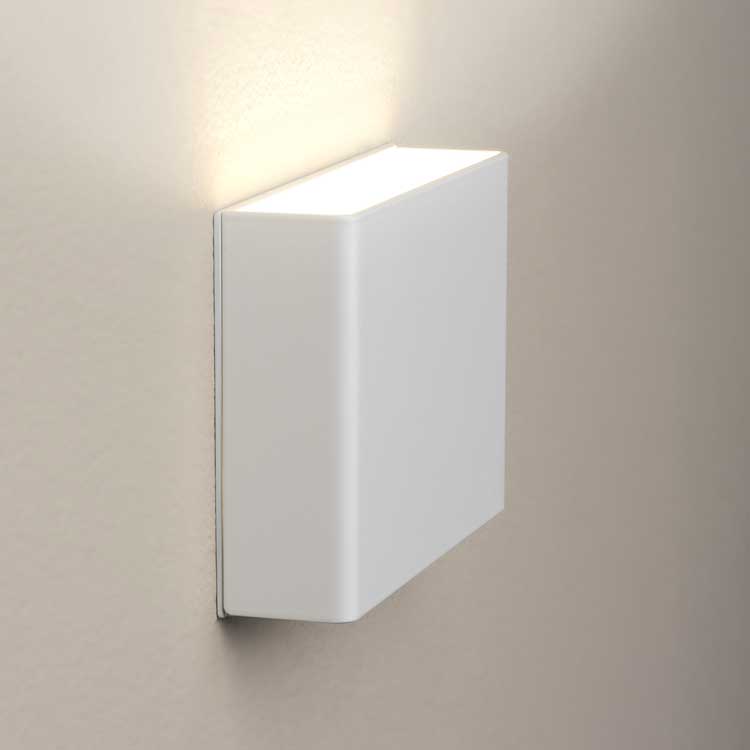

The 6578 wall-mounted light from the O-tel range by MILAN ILUMINACION has a housing made from die-cast aluminium. Finish: textured white (RAL 9016).
1 × DOB LED 7 W, 665 lm (95 lm/W), 2,700 K, CRI 90, 3-step MacAdam, driver on the LED board, no external transformer required, 230 V, dimmable with an LED-compatible phase-cut dimmer, energy efficiency class F, IP20 protection rating (for dry indoor use only), protection class I (with earth connection), height 91 mm, diameter 130 mm, canopy 130 × 91 mm.
Tested dimmers: Eltako EUD61NPN, dimmable 20–100 per cent; Casambi CBU-TED, dimmable 20–100 per cent.
Technical specifications
| Luminaire |
|---|
| Item number | 6578 | Luminaire type | wall-mounted light |
| Range | O-tel | EAN | 8435146965784 |
| Finish and material |
|---|
| Finish | textured white paint finish (RAL 9016) | Housing | Base: die-cast aluminium |
| Other materials | Punched sheet steel, 1 mm |
| Light |
|---|
| Light source | 1 × DOB LED 7 W | Luminous flux | 665 lm |
| Light colour | 2,700 K | Colour rendering | CRI 90 |
| Colour tolerance | 3-step MacAdam |
| Electrical |
|---|
| Rated voltage | 230 V |
| Dimmability | dimmable with an LED-compatible phase-cut dimmer |
| Energy efficiency class | F | Protection rating | IP20 |
| Protection class | I |
| Dimensions |
|---|
| Height | 91 mm | Diameter | 130 mm |
| Canopy | 130 × 91 mm |
| Packaging and dispatch |
|---|
| Number of boxes | 1 | Box 1 | 16.5 × 13.5 × 8.9 cm |
| Shipping weight | 0.7 kg |
